Step1: Product

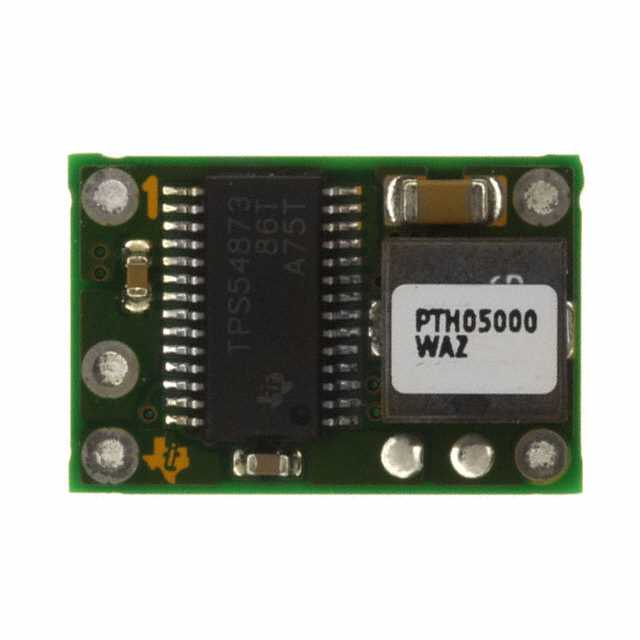

Texas Instruments PTH05000WAZ
Image shown is a representation only
Manufacturer
Manufacturer No
PTH05000WAZ
Quantity
3
Availability
In Stock
Package
5-SMD Module
Packaging
Tray
Description
DC DC CONVERTER 0.9-3.6V
Detailed Description
Non-Isolated PoL Module DC DC Converter 1 Output 0.9 ~ 3.6V 6A 4.5V - 5.5V Input
Datasheet
Mfr
Texas Instruments
Type
Non-Isolated PoL Module
Series
PTH05000W
Features
OTP, UVLO
Packaging
Tray
Efficiency
92%
Applications
ITE (Commercial)
Mounting Type
Surface Mount
Package / Case
5-SMD Module
Size / Dimension
0.75" L x 0.50" W x 0.36" H (19.1mm x 12.7mm x 9.1mm)
Number of Outputs
1
Voltage - Output 1
0.9 ~ 3.6V
Base Product Number
PTH05000
Operating Temperature
-40°C ~ 85°C
Voltage - Input (Max)
5.5V
Voltage - Input (Min)
4.5V
Current - Output (Max)
6A
| Attribute | Value |
|---|---|
| Mfr | Texas Instruments |
| Type | Non-Isolated PoL Module |
| Series | PTH05000W |
| Features | OTP, UVLO |
| Packaging | Tray |
| Efficiency | 92% |
| Applications | ITE (Commercial) |
| Mounting Type | Surface Mount |
| Package / Case | 5-SMD Module |
| Size / Dimension | 0.75" L x 0.50" W x 0.36" H (19.1mm x 12.7mm x 9.1mm) |
| Number of Outputs | 1 |
| Voltage - Output 1 | 0.9 ~ 3.6V |
| Base Product Number | PTH05000 |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Input (Max) | 5.5V |
| Voltage - Input (Min) | 4.5V |
| Current - Output (Max) | 6A |
