Step1: Product
ARTESYN / Advanced Energy PTH05050WAH

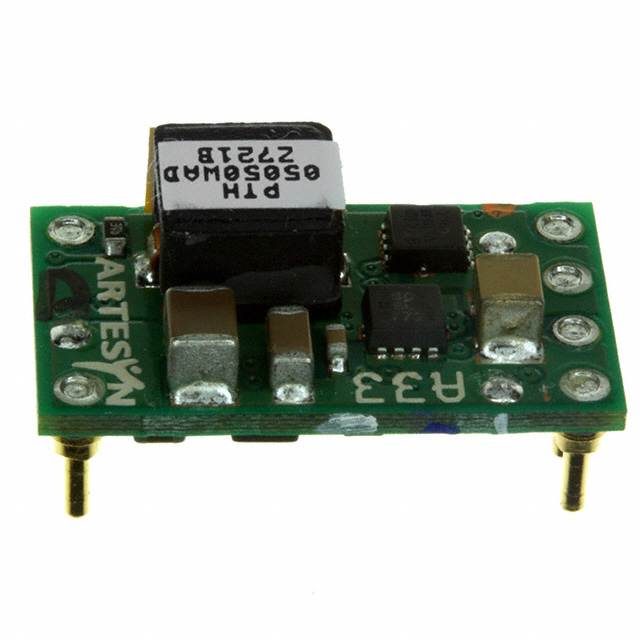

Image shown is a representation only
Manufacturer
Manufacturer No
PTH05050WAH
Quantity
25
Availability
In Stock
Package
6-DIP Module
Packaging
Tray
Description
DC DC CONVERTER 0.8-3.6V 21W
Detailed Description
Non-Isolated PoL Module DC DC Converter 1 Output 0.8 ~ 3.6V 6A 4.5V - 5.5V Input
Datasheet
Mfr
ARTESYN / Advanced Energy
Type
Non-Isolated PoL Module
Series
PTH05050W (21W)
Features
UVLO
Packaging
Tray
Efficiency
95%
Applications
ITE (Commercial)
Mounting Type
Through Hole
Power (Watts)
21 W
Package / Case
6-DIP Module
Size / Dimension
0.87" L x 0.50" W x 0.34" H (22.1mm x 12.7mm x 8.6mm)
Number of Outputs
1
Voltage - Output 1
0.8 ~ 3.6V
Operating Temperature
-40°C ~ 85°C
Voltage - Input (Max)
5.5V
Voltage - Input (Min)
4.5V
Current - Output (Max)
6A
| Attribute | Value |
|---|---|
| Mfr | ARTESYN / Advanced Energy |
| Type | Non-Isolated PoL Module |
| Series | PTH05050W (21W) |
| Features | UVLO |
| Packaging | Tray |
| Efficiency | 95% |
| Applications | ITE (Commercial) |
| Mounting Type | Through Hole |
| Power (Watts) | 21 W |
| Package / Case | 6-DIP Module |
| Size / Dimension | 0.87" L x 0.50" W x 0.34" H (22.1mm x 12.7mm x 8.6mm) |
| Number of Outputs | 1 |
| Voltage - Output 1 | 0.8 ~ 3.6V |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Input (Max) | 5.5V |
| Voltage - Input (Min) | 4.5V |
| Current - Output (Max) | 6A |
