Texas Instruments LM1117S-ADJ

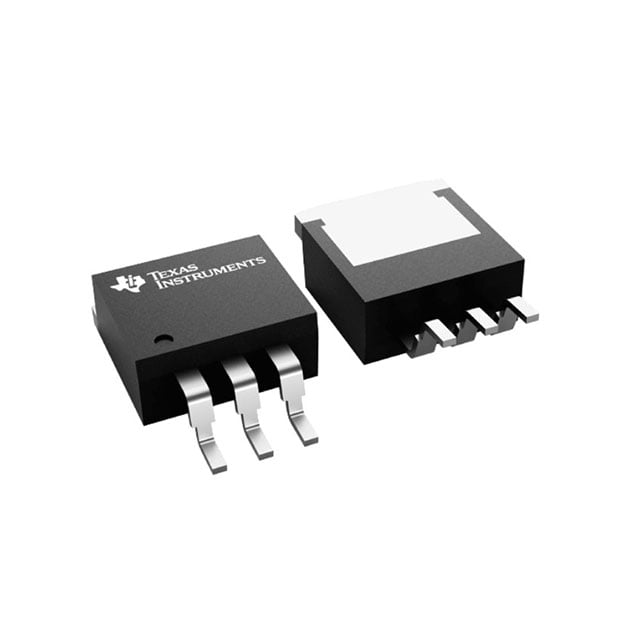

Image shown is a representation only
Manufacturer
Manufacturer No
LM1117S-ADJ
Package
TO-263-4, D2PAK (3 Leads + Tab), TO-263AA
Packaging
Tube
Description
IC REG LIN POS ADJ 800MA TO263
Detailed Description
Linear Voltage Regulator IC Positive Adjustable 1 Output 800mA TO-263 (DDPAK-3)
DataSheet
Mfr
Texas Instruments
PSRR
75dB (120Hz)
Packaging
Tube
Output Type
Adjustable
Part Status
Obsolete
Mounting Type
Surface Mount
Package / Case
TO-263-4, D2PAK (3 Leads + Tab), TO-263AA
Current - Output
800mA
Base Product Number
LM1117
Protection Features
Over Current, Over Temperature
Number of Regulators
1
Output Configuration
Positive
Operating Temperature
0°C ~ 125°C
Voltage - Input (Max)
15V
Voltage Dropout (Max)
1.2V @ 800mA
Current - Supply (Max)
10 mA
Voltage - Output (Max)
13.8V
Supplier Device Package
TO-263 (DDPAK-3)
Current - Quiescent (Iq)
5 mA
Voltage - Output (Min/Fixed)
1.25V
| Attribute | Value |
|---|---|
| Mfr | Texas Instruments |
| PSRR | 75dB (120Hz) |
| Packaging | Tube |
| Output Type | Adjustable |
| Part Status | Obsolete |
| Mounting Type | Surface Mount |
| Package / Case | TO-263-4, D2PAK (3 Leads + Tab), TO-263AA |
| Current - Output | 800mA |
| Base Product Number | LM1117 |
| Protection Features | Over Current, Over Temperature |
| Number of Regulators | 1 |
| Output Configuration | Positive |
| Operating Temperature | 0°C ~ 125°C |
| Voltage - Input (Max) | 15V |
| Voltage Dropout (Max) | 1.2V @ 800mA |
| Current - Supply (Max) | 10 mA |
| Voltage - Output (Max) | 13.8V |
| Supplier Device Package | TO-263 (DDPAK-3) |
| Current - Quiescent (Iq) | 5 mA |
| Voltage - Output (Min/Fixed) | 1.25V |
