Texas Instruments LM1117MPX-5.0

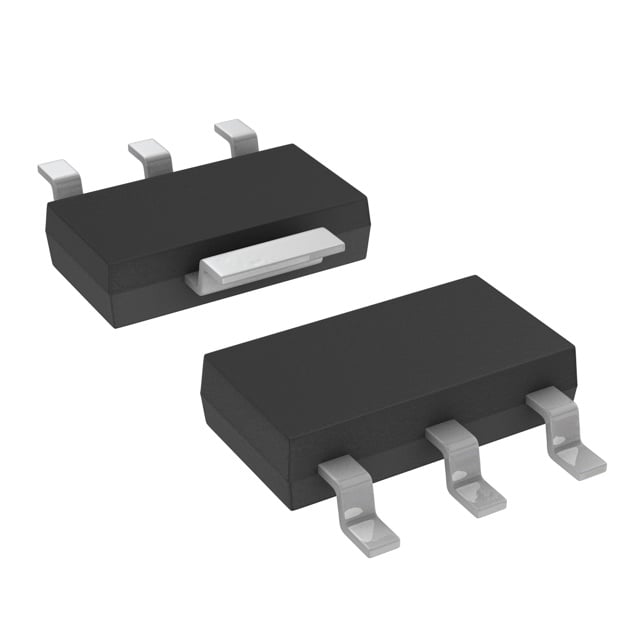

Image shown is a representation only
Manufacturer
Manufacturer No
LM1117MPX-5.0
Package
TO-261-4, TO-261AA
Packaging
Tape & Reel (TR); Cut Tape (CT);
Description
IC REG LINEAR 5V 800MA SOT-223-4
Detailed Description
Linear Voltage Regulator IC Positive Fixed 1 Output 800mA SOT-223-4
DataSheet
Mfr
Texas Instruments
PSRR
75dB (120Hz)
Packaging
Tape & Reel (TR); Cut Tape (CT); Digi-Reel®
Output Type
Fixed
Part Status
Obsolete
Mounting Type
Surface Mount
Package / Case
TO-261-4, TO-261AA
Current - Output
800mA
Base Product Number
LM1117
Protection Features
Over Current, Over Temperature
Number of Regulators
1
Output Configuration
Positive
Operating Temperature
0°C ~ 125°C
Voltage - Input (Max)
15V
Voltage Dropout (Max)
1.2V @ 800mA
Current - Supply (Max)
10 mA
Supplier Device Package
SOT-223-4
Current - Quiescent (Iq)
5 mA
Voltage - Output (Min/Fixed)
5V
| Attribute | Value |
|---|---|
| Mfr | Texas Instruments |
| PSRR | 75dB (120Hz) |
| Packaging | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |
| Output Type | Fixed |
| Part Status | Obsolete |
| Mounting Type | Surface Mount |
| Package / Case | TO-261-4, TO-261AA |
| Current - Output | 800mA |
| Base Product Number | LM1117 |
| Protection Features | Over Current, Over Temperature |
| Number of Regulators | 1 |
| Output Configuration | Positive |
| Operating Temperature | 0°C ~ 125°C |
| Voltage - Input (Max) | 15V |
| Voltage Dropout (Max) | 1.2V @ 800mA |
| Current - Supply (Max) | 10 mA |
| Supplier Device Package | SOT-223-4 |
| Current - Quiescent (Iq) | 5 mA |
| Voltage - Output (Min/Fixed) | 5V |
