Step1: Product
Texas Instruments CC3235SF12RGKR

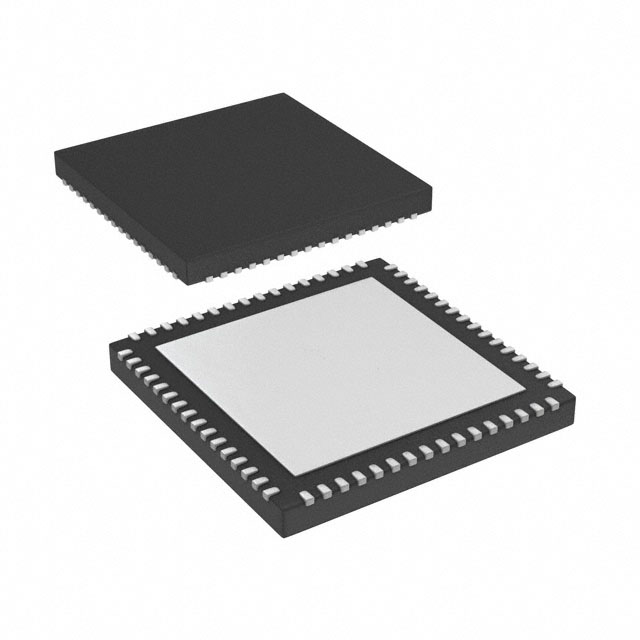

Image shown is a representation only
Manufacturer
Manufacturer No
CC3235SF12RGKR
Quantity
42
Availability
In Stock
Package
64-VFQFN Exposed Pad
Packaging
Tape & Reel (TR); Cut Tape (CT);
Description
IC RF TXRX+MCU WIFI 64VQFN
Detailed Description
IC RF TxRx + MCU WiFi 802.11a/b/g/n 2.412GHz ~ 2.472GHz, 5.18GHz ~ 5.825GHz 64-VFQFN Exposed Pad
DataSheet
Mfr
Texas Instruments
GPIO
21
Type
TxRx + MCU
Series
SimpleLink™
Protocol
802.11a/b/g/n
Frequency
2.412GHz ~ 2.472GHz, 5.18GHz ~ 5.825GHz
Packaging
Tape & Reel (TR); Cut Tape (CT); Digi-Reel®
Modulation
CCK, DSSS, OFDM
Memory Size
1MB Flash, 256kB RAM
Part Status
Active
Sensitivity
-96dBm
Mounting Type
Surface Mount
Package / Case
64-VFQFN Exposed Pad
Power - Output
18.3dBm
Data Rate (Max)
54Mbps
Voltage - Supply
2.1V ~ 3.6V
Serial Interfaces
ADC, I2C, I2S, PWM, JTAG, SPI, UART
RF Family/Standard
WiFi
Base Product Number
CC3235
Current - Receiving
59mA
DigiKey Programmable
Not Verified
Operating Temperature
-40°C ~ 85°C (TA)
Current - Transmitting
272mA
Supplier Device Package
64-VQFN (9x9)
| Attribute | Value |
|---|---|
| Mfr | Texas Instruments |
| GPIO | 21 |
| Type | TxRx + MCU |
| Series | SimpleLink™ |
| Protocol | 802.11a/b/g/n |
| Frequency | 2.412GHz ~ 2.472GHz, 5.18GHz ~ 5.825GHz |
| Packaging | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |
| Modulation | CCK, DSSS, OFDM |
| Memory Size | 1MB Flash, 256kB RAM |
| Part Status | Active |
| Sensitivity | -96dBm |
| Mounting Type | Surface Mount |
| Package / Case | 64-VFQFN Exposed Pad |
| Power - Output | 18.3dBm |
| Data Rate (Max) | 54Mbps |
| Voltage - Supply | 2.1V ~ 3.6V |
| Serial Interfaces | ADC, I2C, I2S, PWM, JTAG, SPI, UART |
| RF Family/Standard | WiFi |
| Base Product Number | CC3235 |
| Current - Receiving | 59mA |
| DigiKey Programmable | Not Verified |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Current - Transmitting | 272mA |
| Supplier Device Package | 64-VQFN (9x9) |
