Step1: Product

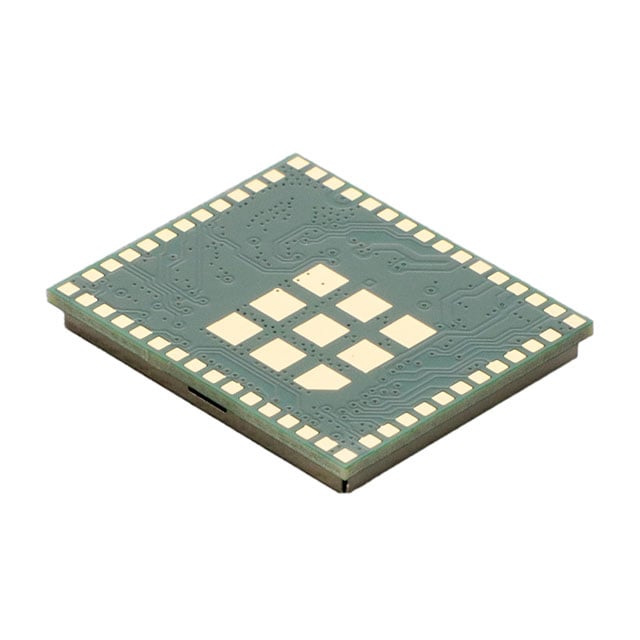

Texas Instruments CC3235MODSF12MOBR

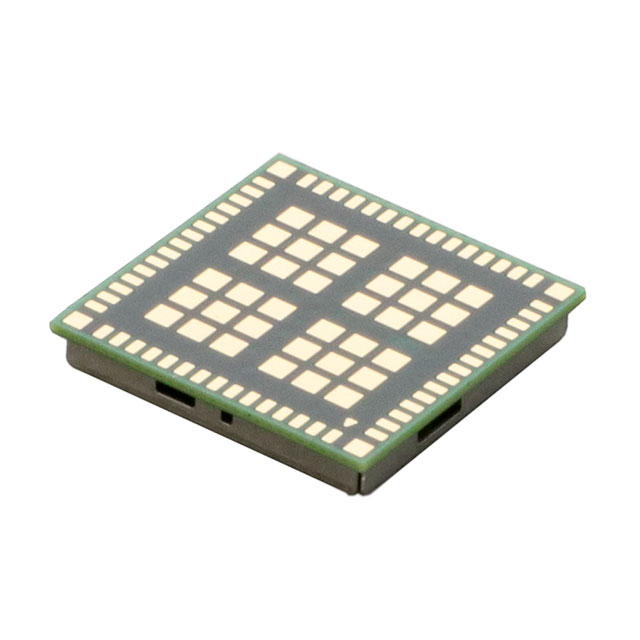

Image shown is a representation only
Manufacturer
Manufacturer No
CC3235MODSF12MOBR
Quantity
196
Availability
In Stock
Package
63-SMD Module
Packaging
Tape & Reel (TR); Cut Tape (CT);
Description
RF TXRX MODULE WIFI CHIP SMD
Detailed Description
WiFi 802.11a/b/g/n Transceiver Module 2.412GHz ~ 2.472GHz, 5.18GHz ~ 5.825GHz Integrated, Chip Surface Mount
DataSheet
Mfr
Texas Instruments
Series
SimpleLink™
Protocol
802.11a/b/g/n
Data Rate
54Mbps
Frequency
2.412GHz ~ 2.472GHz, 5.18GHz ~ 5.825GHz
Packaging
Tape & Reel (TR); Cut Tape (CT); Digi-Reel®
Modulation
CCK, DSSS, OFDM
Memory Size
1MB Flash, 256kB RAM
Part Status
Active
Sensitivity
-94.5dBm
Antenna Type
Integrated, Chip
Mounting Type
Surface Mount
Package / Case
63-SMD Module
Power - Output
16.3dBm
Voltage - Supply
2.3V ~ 3.6V
Serial Interfaces
I2C, I2S, SPI, UART
RF Family/Standard
WiFi
Utilized IC / Part
CC3235SF
Base Product Number
CC3235
Current - Receiving
53mA ~ 80mA
DigiKey Programmable
Not Verified
Operating Temperature
-40°C ~ 85°C (TA)
Current - Transmitting
154mA ~ 329mA
| Attribute | Value |
|---|---|
| Mfr | Texas Instruments |
| Series | SimpleLink™ |
| Protocol | 802.11a/b/g/n |
| Data Rate | 54Mbps |
| Frequency | 2.412GHz ~ 2.472GHz, 5.18GHz ~ 5.825GHz |
| Packaging | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |
| Modulation | CCK, DSSS, OFDM |
| Memory Size | 1MB Flash, 256kB RAM |
| Part Status | Active |
| Sensitivity | -94.5dBm |
| Antenna Type | Integrated, Chip |
| Mounting Type | Surface Mount |
| Package / Case | 63-SMD Module |
| Power - Output | 16.3dBm |
| Voltage - Supply | 2.3V ~ 3.6V |
| Serial Interfaces | I2C, I2S, SPI, UART |
| RF Family/Standard | WiFi |
| Utilized IC / Part | CC3235SF |
| Base Product Number | CC3235 |
| Current - Receiving | 53mA ~ 80mA |
| DigiKey Programmable | Not Verified |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Current - Transmitting | 154mA ~ 329mA |
