Step1: Product
Tensility International Corp 55-00146

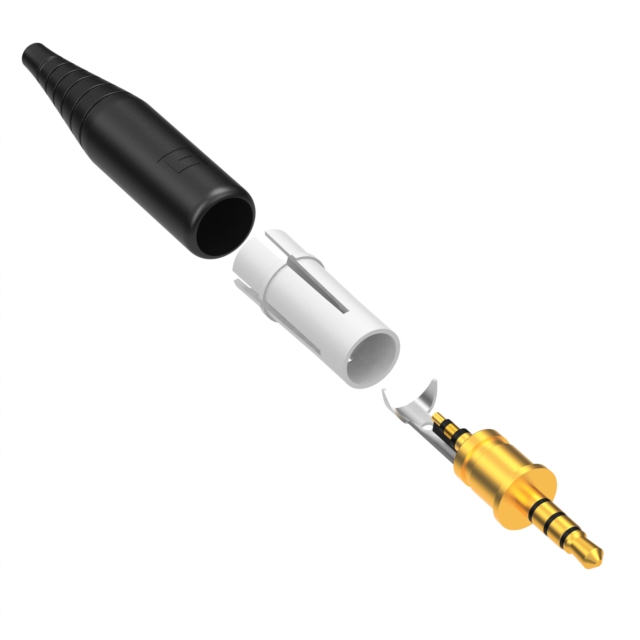

Image shown is a representation only
Manufacturer
Manufacturer No
55-00146
Packaging
Bulk
Description
AUDIO PLUG STEREO 3.5MM 4COND
Detailed Description
3.50mm (0.141", 1/8", Mini Plug) - Headphone Phone Plug Stereo (4 Conductor, TRRS) Connector Solder
DataSheet
Mfr
Tensility International Corp
Gender
Male
Features
Strain Relief
Packaging
Bulk
Shielding
Unshielded
Body Color
Gold, Black
Part Status
Active
Termination
Solder
Signal Lines
Stereo (4 Conductor, TRRS)
Body Material
Brass
Cable Opening
0.094" ~ 0.197" (2.40mm ~ 5.00mm)
Mounting Type
Free Hanging (In-Line)
Connector Type
Phone Plug
Actual Diameter
0.138" (3.50mm)
Contact Material
Gold (Au)
Housing Material
Thermoplastic Polyurethane (TPU)
Insulation Color
Black
Internal Switch(s)
Does Not Contain Switch
Mating Length/Depth
0.551" (14.00mm)
Operating Temperature
-25°C ~ 90°C
Contact Material - Plating
Gold
Number of Positions/Contacts
4 Conductors, 4 Contacts
Industry Recognized Mating Diameter
3.50mm (0.141", 1/8", Mini Plug) - Headphone
| Attribute | Value |
|---|---|
| Mfr | Tensility International Corp |
| Gender | Male |
| Features | Strain Relief |
| Packaging | Bulk |
| Shielding | Unshielded |
| Body Color | Gold, Black |
| Part Status | Active |
| Termination | Solder |
| Signal Lines | Stereo (4 Conductor, TRRS) |
| Body Material | Brass |
| Cable Opening | 0.094" ~ 0.197" (2.40mm ~ 5.00mm) |
| Mounting Type | Free Hanging (In-Line) |
| Connector Type | Phone Plug |
| Actual Diameter | 0.138" (3.50mm) |
| Contact Material | Gold (Au) |
| Housing Material | Thermoplastic Polyurethane (TPU) |
| Insulation Color | Black |
| Internal Switch(s) | Does Not Contain Switch |
| Mating Length/Depth | 0.551" (14.00mm) |
| Operating Temperature | -25°C ~ 90°C |
| Contact Material - Plating | Gold |
| Number of Positions/Contacts | 4 Conductors, 4 Contacts |
| Industry Recognized Mating Diameter | 3.50mm (0.141", 1/8", Mini Plug) - Headphone |
