Step1: Product
Tensility International Corp 50-01018

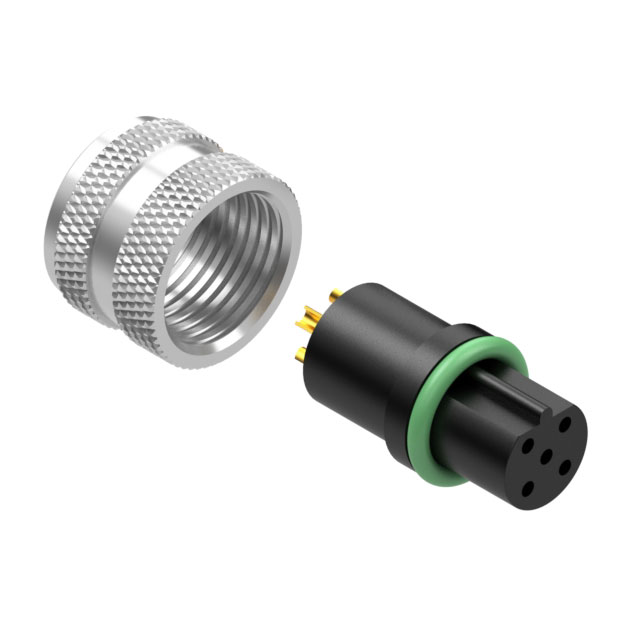

Image shown is a representation only
Manufacturer
Manufacturer No
50-01018
Packaging
Tray
Description
M12 B-CODE 5POS RCPT MOLDING
Detailed Description
5 Position Circular Connector Receptacle, Female Sockets Solder Cup
DataSheet
Mfr
Tensility International Corp
Color
Silver
Series
M12
Features
Coupling Nut
Packaging
Tray
Shielding
Unshielded
Orientation
B
Part Status
Active
Termination
Solder Cup
Shell Finish
Nickel
Cable Opening
0.354" (9.00mm)
Mounting Type
Free Hanging (In-Line)
Connector Type
Receptacle, Female Sockets
Fastening Type
Threaded
Shell Material
Brass
Voltage Rating
60V
Insert Material
Polyamide (PA66), Nylon 6/6
Contact Material
Brass
Primary Material
Metal
Ingress Protection
IP67 - Dust Tight, Waterproof
Number of Positions
5
Shell Size - Insert
M12-5
Current Rating (Amps)
4A
Operating Temperature
-40°C ~ 105°C
Contact Finish - Mating
Gold
Material Flammability Rating
UL94 HB
| Attribute | Value |
|---|---|
| Mfr | Tensility International Corp |
| Color | Silver |
| Series | M12 |
| Features | Coupling Nut |
| Packaging | Tray |
| Shielding | Unshielded |
| Orientation | B |
| Part Status | Active |
| Termination | Solder Cup |
| Shell Finish | Nickel |
| Cable Opening | 0.354" (9.00mm) |
| Mounting Type | Free Hanging (In-Line) |
| Connector Type | Receptacle, Female Sockets |
| Fastening Type | Threaded |
| Shell Material | Brass |
| Voltage Rating | 60V |
| Insert Material | Polyamide (PA66), Nylon 6/6 |
| Contact Material | Brass |
| Primary Material | Metal |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Number of Positions | 5 |
| Shell Size - Insert | M12-5 |
| Current Rating (Amps) | 4A |
| Operating Temperature | -40°C ~ 105°C |
| Contact Finish - Mating | Gold |
| Material Flammability Rating | UL94 HB |
