Step1: Product

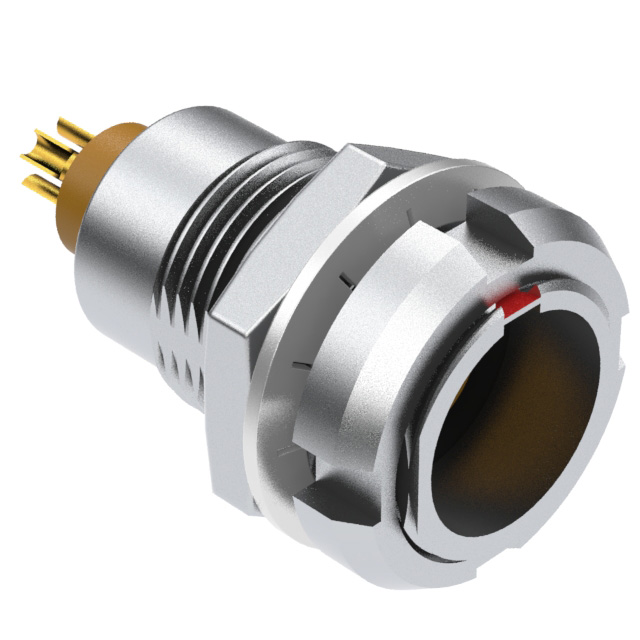

Tensility International Corp 51-00021
Image shown is a representation only
Manufacturer
Manufacturer No
51-00021
Packaging
Bulk
Description
CONN RCPT FMALE 5POS SOLDER CUP
Detailed Description
5 Position Circular Connector Receptacle, Female Sockets Solder Cup
DataSheet
Mfr
Tensility International Corp
Color
Silver
Series
PPL7
Packaging
Bulk
Shielding
Shielded
Part Status
Active
Termination
Solder Cup
Shell Finish
Nickel
Mounting Type
Panel Mount
Connector Type
Receptacle, Female Sockets
Fastening Type
Push-Pull
Shell Material
Brass
Voltage Rating
300V
Insert Material
Polyphenylene Sulfide (PPS)
Contact Material
Brass
Mounting Feature
Front and Rear Side Nut
Primary Material
Metal
Ingress Protection
IP50 - Dust Protected
Number of Positions
5
Current Rating (Amps)
6.5A
Operating Temperature
-55°C ~ 220°C
Contact Finish - Mating
Gold
Material Flammability Rating
UL94 V-0
Contact Finish Thickness - Mating
8.00µin (0.203µm)
| Attribute | Value |
|---|---|
| Mfr | Tensility International Corp |
| Color | Silver |
| Series | PPL7 |
| Packaging | Bulk |
| Shielding | Shielded |
| Part Status | Active |
| Termination | Solder Cup |
| Shell Finish | Nickel |
| Mounting Type | Panel Mount |
| Connector Type | Receptacle, Female Sockets |
| Fastening Type | Push-Pull |
| Shell Material | Brass |
| Voltage Rating | 300V |
| Insert Material | Polyphenylene Sulfide (PPS) |
| Contact Material | Brass |
| Mounting Feature | Front and Rear Side Nut |
| Primary Material | Metal |
| Ingress Protection | IP50 - Dust Protected |
| Number of Positions | 5 |
| Current Rating (Amps) | 6.5A |
| Operating Temperature | -55°C ~ 220°C |
| Contact Finish - Mating | Gold |
| Material Flammability Rating | UL94 V-0 |
| Contact Finish Thickness - Mating | 8.00µin (0.203µm) |
