Step1: Product
TE Connectivity Potter & Brumfield Relays V23101D 103A201

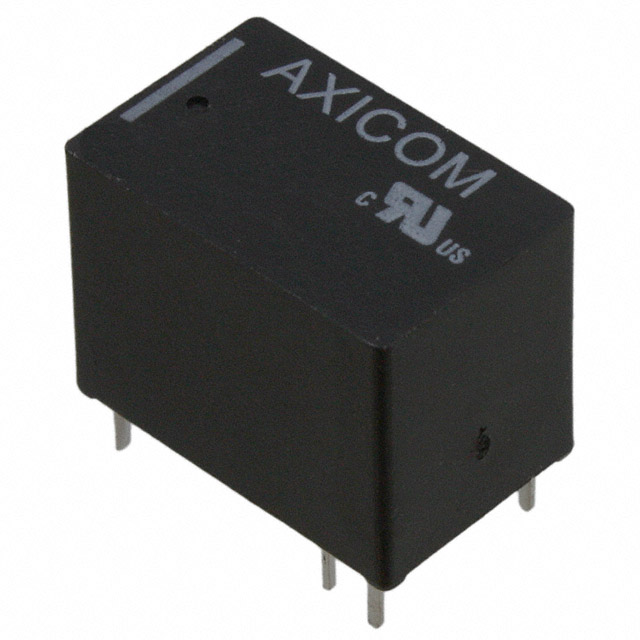

Image shown is a representation only
Manufacturer
Manufacturer No
V23101D 103A201
Packaging
Tube
Description
RELAY GEN PURPOSE SPDT 1.25A 5V
Detailed Description
General Purpose Relay SPDT (1 Form C) Through Hole
DataSheet
Series
V23101, AXICOM
Coil Type
Non Latching
Packaging
Tube
Relay Type
General Purpose
Part Status
Active
Coil Current
41.6 mA
Coil Voltage
5VDC
Contact Form
SPDT (1 Form C)
Manufacturer
TE Connectivity Potter & Brumfield Relays
Operate Time
7 ms
Release Time
5 ms
Mounting Type
Through Hole
Approval Agency
cURus
Coil Resistance
120 Ohms
Contact Material
Silver Palladium (AgPd), Gold (Au)
Switching Voltage
125VAC, 120VDC - Max
Termination Style
PC Pin
Base Product Number
V23101
Load - Max Switching
62.5VA, 30W
Must Operate Voltage
3.8 VDC
Must Release Voltage
0.5 VDC
Operating Temperature
-40°C ~ 85°C
Contact Rating (Current)
1.25 A
| Attribute | Value |
|---|---|
| Series | V23101, AXICOM |
| Coil Type | Non Latching |
| Packaging | Tube |
| Relay Type | General Purpose |
| Part Status | Active |
| Coil Current | 41.6 mA |
| Coil Voltage | 5VDC |
| Contact Form | SPDT (1 Form C) |
| Manufacturer | TE Connectivity Potter & Brumfield Relays |
| Operate Time | 7 ms |
| Release Time | 5 ms |
| Mounting Type | Through Hole |
| Approval Agency | cURus |
| Coil Resistance | 120 Ohms |
| Contact Material | Silver Palladium (AgPd), Gold (Au) |
| Switching Voltage | 125VAC, 120VDC - Max |
| Termination Style | PC Pin |
| Base Product Number | V23101 |
| Load - Max Switching | 62.5VA, 30W |
| Must Operate Voltage | 3.8 VDC |
| Must Release Voltage | 0.5 VDC |
| Operating Temperature | -40°C ~ 85°C |
| Contact Rating (Current) | 1.25 A |
