Step1: Product
TE Connectivity Potter & Brumfield Relays 3-1415517-1

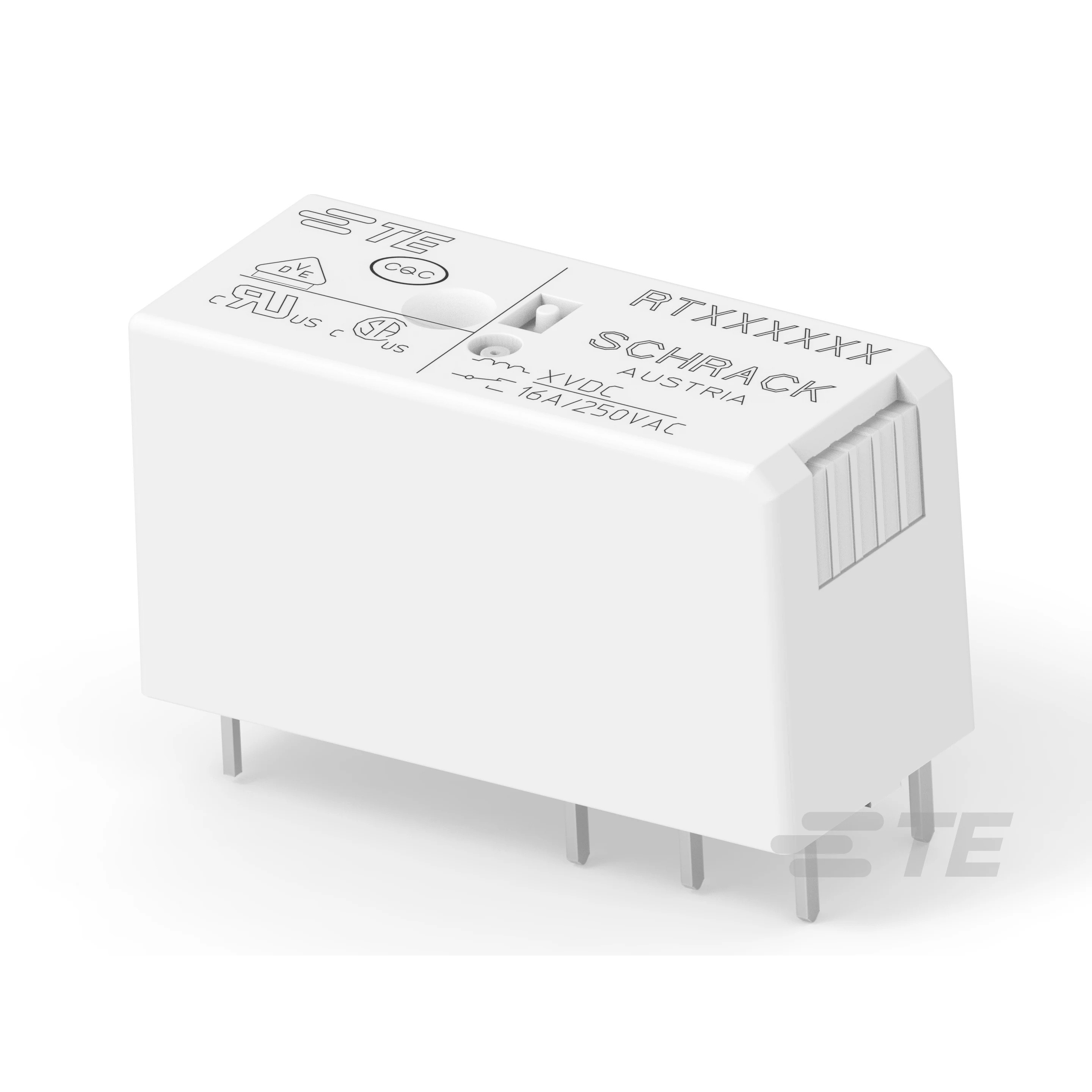

Image shown is a representation only
Manufacturer
Manufacturer No
3-1415517-1
Packaging
Bulk
Description
RELAY GEN PURP
Detailed Description
General Purpose Relay SPDT (1 Form C) 12VDC Coil Through Hole
Datasheet
Mfr
TE Connectivity Potter & Brumfield Relays
Series
RT, SCHRACK
Coil Type
Latching, Single Coil
Packaging
Bulk
Relay Type
General Purpose
Seal Rating
Sealed - Flux Protection
Coil Current
33.3 mA
Coil Voltage
12VDC
Contact Form
SPDT (1 Form C)
Operate Time
10 ms
Release Time
10 ms
Mounting Type
Through Hole
Approval Agency
CQC, CSA, cURus, VDE
Coil Insulation
Class F
Coil Resistance
360 Ohms
Contact Material
Silver Tin Oxide (AgSnO)
Switching Voltage
400VAC - Max
Termination Style
PC Pin
Base Product Number
1415517
Load - Max Switching
6400VA
Must Operate Voltage
8.4 VDC
Must Release Voltage
6.6 VDC
Operating Temperature
-40°C ~ 85°C
Contact Rating (Current)
16 A
| Attribute | Value |
|---|---|
| Mfr | TE Connectivity Potter & Brumfield Relays |
| Series | RT, SCHRACK |
| Coil Type | Latching, Single Coil |
| Packaging | Bulk |
| Relay Type | General Purpose |
| Seal Rating | Sealed - Flux Protection |
| Coil Current | 33.3 mA |
| Coil Voltage | 12VDC |
| Contact Form | SPDT (1 Form C) |
| Operate Time | 10 ms |
| Release Time | 10 ms |
| Mounting Type | Through Hole |
| Approval Agency | CQC, CSA, cURus, VDE |
| Coil Insulation | Class F |
| Coil Resistance | 360 Ohms |
| Contact Material | Silver Tin Oxide (AgSnO) |
| Switching Voltage | 400VAC - Max |
| Termination Style | PC Pin |
| Base Product Number | 1415517 |
| Load - Max Switching | 6400VA |
| Must Operate Voltage | 8.4 VDC |
| Must Release Voltage | 6.6 VDC |
| Operating Temperature | -40°C ~ 85°C |
| Contact Rating (Current) | 16 A |
