Step1: Product

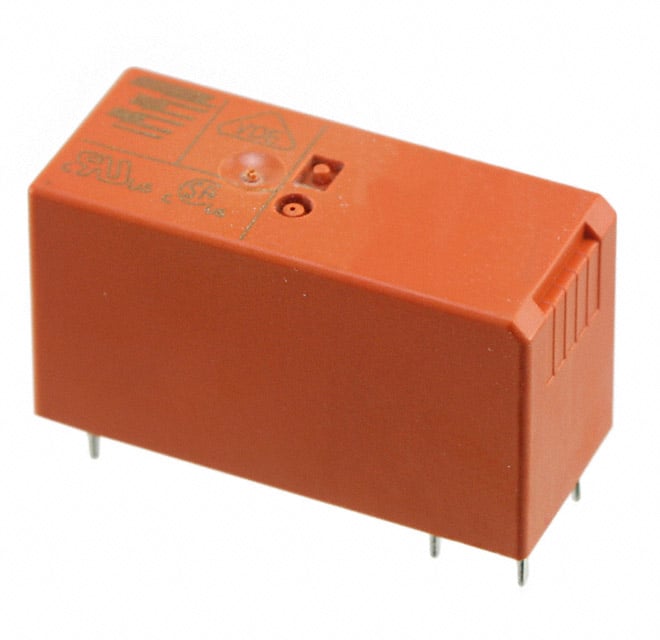

TE Connectivity Potter & Brumfield Relays 3-1415379-1
Image shown is a representation only
Manufacturer
Manufacturer No
3-1415379-1
Packaging
Tube
Description
RELAY GEN PURPOSE SPST 16A 24V
Detailed Description
General Purpose Relay SPST-NO (1 Form A) 24VDC Coil Through Hole
DataSheet
Mfr
TE Connectivity Potter & Brumfield Relays
Series
RT1, Inrush, SCHRACK
Coil Type
Latching, Single Coil
Packaging
Tube
Relay Type
General Purpose
Part Status
Active
Seal Rating
Sealed - Flux Protection
Coil Current
16.7 mA
Coil Voltage
24VDC
Contact Form
SPST-NO (1 Form A)
Operate Time
10 ms
Release Time
10 ms
Mounting Type
Through Hole
Approval Agency
CQC, CSA, cURus, VDE
Coil Insulation
Class F
Coil Resistance
1.44 kOhms
Contact Material
Silver Tin Oxide (AgSnO)
Switching Voltage
400VAC - Max
Termination Style
PC Pin
Base Product Number
RT33LA
Load - Max Switching
6400VA
Must Operate Voltage
16.8 VDC
Operating Temperature
-10°C ~ 85°C
Contact Rating (Current)
16 A
| Attribute | Value |
|---|---|
| Mfr | TE Connectivity Potter & Brumfield Relays |
| Series | RT1, Inrush, SCHRACK |
| Coil Type | Latching, Single Coil |
| Packaging | Tube |
| Relay Type | General Purpose |
| Part Status | Active |
| Seal Rating | Sealed - Flux Protection |
| Coil Current | 16.7 mA |
| Coil Voltage | 24VDC |
| Contact Form | SPST-NO (1 Form A) |
| Operate Time | 10 ms |
| Release Time | 10 ms |
| Mounting Type | Through Hole |
| Approval Agency | CQC, CSA, cURus, VDE |
| Coil Insulation | Class F |
| Coil Resistance | 1.44 kOhms |
| Contact Material | Silver Tin Oxide (AgSnO) |
| Switching Voltage | 400VAC - Max |
| Termination Style | PC Pin |
| Base Product Number | RT33LA |
| Load - Max Switching | 6400VA |
| Must Operate Voltage | 16.8 VDC |
| Operating Temperature | -10°C ~ 85°C |
| Contact Rating (Current) | 16 A |
