Step1: Product
TE Connectivity Passive Product SQZW522RK

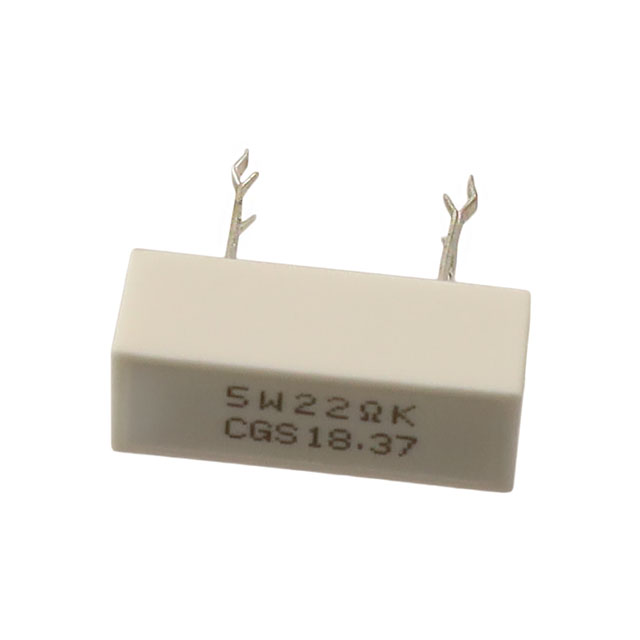

Image shown is a representation only
Manufacturer
Manufacturer No
SQZW522RK
Package
Radial
Packaging
Bulk
Description
RES 22 OHM 10% 5W RADIAL
Detailed Description
22 Ohms ±10% 5W Through Hole Resistor Radial Cement Coated, Flame Proof, Moisture Resistant, Safety Wirewound
DataSheet
Mfr
TE Connectivity Passive Product
Series
SQ, CGS
Features
Cement Coated, Flame Proof, Moisture Resistant, Safety
Packaging
Bulk
Tolerance
±10%
Resistance
22 Ohms
Composition
Wirewound
Part Status
Active
Power (Watts)
5W
Package / Case
Radial
Size / Dimension
1.102" L x 0.394" W (28.00mm x 10.00mm)
Base Product Number
SQZW5
Height - Seated (Max)
0.433" (11.00mm)
Operating Temperature
-55°C ~ 250°C
Number of Terminations
2
Temperature Coefficient
±300ppm/°C
| Attribute | Value |
|---|---|
| Mfr | TE Connectivity Passive Product |
| Series | SQ, CGS |
| Features | Cement Coated, Flame Proof, Moisture Resistant, Safety |
| Packaging | Bulk |
| Tolerance | ±10% |
| Resistance | 22 Ohms |
| Composition | Wirewound |
| Part Status | Active |
| Power (Watts) | 5W |
| Package / Case | Radial |
| Size / Dimension | 1.102" L x 0.394" W (28.00mm x 10.00mm) |
| Base Product Number | SQZW5 |
| Height - Seated (Max) | 0.433" (11.00mm) |
| Operating Temperature | -55°C ~ 250°C |
| Number of Terminations | 2 |
| Temperature Coefficient | ±300ppm/°C |
