Step1: Product
TE Connectivity Passive Product SQZW5R22J

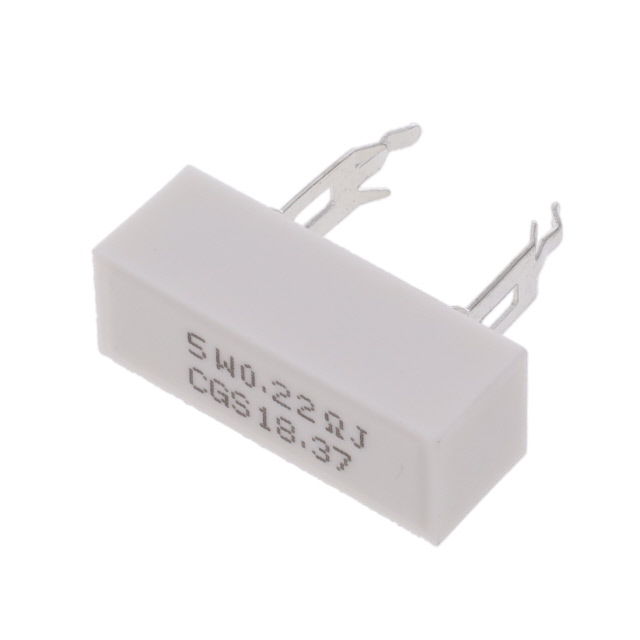

Image shown is a representation only
Manufacturer
Manufacturer No
SQZW5R22J
Package
Radial
Packaging
Bulk
Description
RES 0.22 OHM 5% 5W RADIAL
Detailed Description
220 mOhms ±5% 5W Through Hole Resistor Radial Cement Coated, Flame Proof, Moisture Resistant, Safety Wirewound
DataSheet
Mfr
TE Connectivity Passive Product
Series
SQ, CGS
Features
Cement Coated, Flame Proof, Moisture Resistant, Safety
Packaging
Bulk
Tolerance
±5%
Resistance
220 mOhms
Composition
Wirewound
Part Status
Active
Power (Watts)
5W
Package / Case
Radial
Size / Dimension
1.102" L x 0.394" W (28.00mm x 10.00mm)
Base Product Number
SQZW5
Height - Seated (Max)
0.433" (11.00mm)
Operating Temperature
-55°C ~ 250°C
Number of Terminations
2
Supplier Device Package
Radial Lead
Temperature Coefficient
±300ppm/°C
| Attribute | Value |
|---|---|
| Mfr | TE Connectivity Passive Product |
| Series | SQ, CGS |
| Features | Cement Coated, Flame Proof, Moisture Resistant, Safety |
| Packaging | Bulk |
| Tolerance | ±5% |
| Resistance | 220 mOhms |
| Composition | Wirewound |
| Part Status | Active |
| Power (Watts) | 5W |
| Package / Case | Radial |
| Size / Dimension | 1.102" L x 0.394" W (28.00mm x 10.00mm) |
| Base Product Number | SQZW5 |
| Height - Seated (Max) | 0.433" (11.00mm) |
| Operating Temperature | -55°C ~ 250°C |
| Number of Terminations | 2 |
| Supplier Device Package | Radial Lead |
| Temperature Coefficient | ±300ppm/°C |
