Step1: Product
TE Connectivity Passive Product 36501J10NJTDG

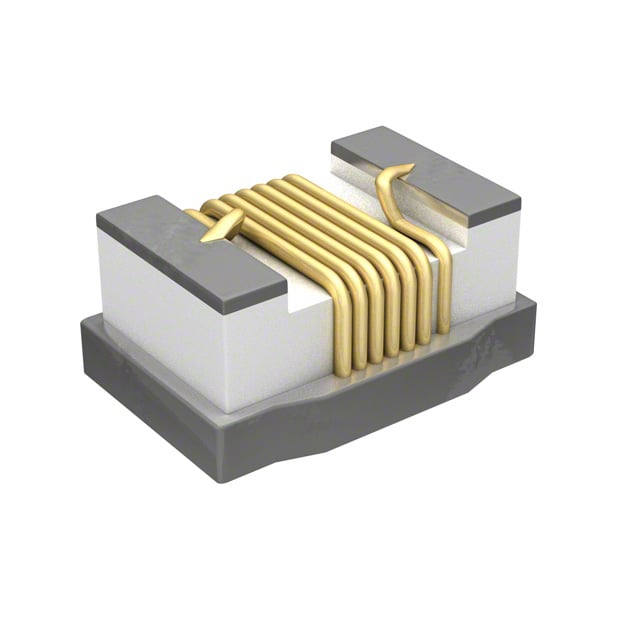

Image shown is a representation only
Manufacturer
Manufacturer No
36501J10NJTDG
Package
0603 (1608 Metric)
Packaging
Tape & Reel (TR); Cut Tape (CT);
Description
FIXED IND 10NH 700MA 130 MOHM
Detailed Description
10 nH Unshielded Wirewound Inductor 700 mA 130mOhm Max 0603 (1608 Metric)
DataSheet
Mfr
TE Connectivity Passive Product
Type
Wirewound
Series
3650, Sigma Inductors
Ratings
AEC-Q200
Q @ Freq
31 @ 250MHz
Packaging
Tape & Reel (TR); Cut Tape (CT); Digi-Reel®
Shielding
Unshielded
Tolerance
±5%
Inductance
10 nH
Part Status
Active
Mounting Type
Surface Mount
Package / Case
0603 (1608 Metric)
Material - Core
Ceramic
Size / Dimension
0.071" L x 0.044" W (1.80mm x 1.12mm)
Base Product Number
36501
DC Resistance (DCR)
130mOhm Max
Current Rating (Amps)
700 mA
Height - Seated (Max)
0.040" (1.02mm)
Operating Temperature
-40°C ~ 125°C
Supplier Device Package
0603 (1608 Metric)
Frequency - Self Resonant
4.8GHz
Inductance Frequency - Test
250 MHz
| Attribute | Value |
|---|---|
| Mfr | TE Connectivity Passive Product |
| Type | Wirewound |
| Series | 3650, Sigma Inductors |
| Ratings | AEC-Q200 |
| Q @ Freq | 31 @ 250MHz |
| Packaging | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |
| Shielding | Unshielded |
| Tolerance | ±5% |
| Inductance | 10 nH |
| Part Status | Active |
| Mounting Type | Surface Mount |
| Package / Case | 0603 (1608 Metric) |
| Material - Core | Ceramic |
| Size / Dimension | 0.071" L x 0.044" W (1.80mm x 1.12mm) |
| Base Product Number | 36501 |
| DC Resistance (DCR) | 130mOhm Max |
| Current Rating (Amps) | 700 mA |
| Height - Seated (Max) | 0.040" (1.02mm) |
| Operating Temperature | -40°C ~ 125°C |
| Supplier Device Package | 0603 (1608 Metric) |
| Frequency - Self Resonant | 4.8GHz |
| Inductance Frequency - Test | 250 MHz |
