Step1: Product
TE Connectivity Passive Product 36501E40NJTDG

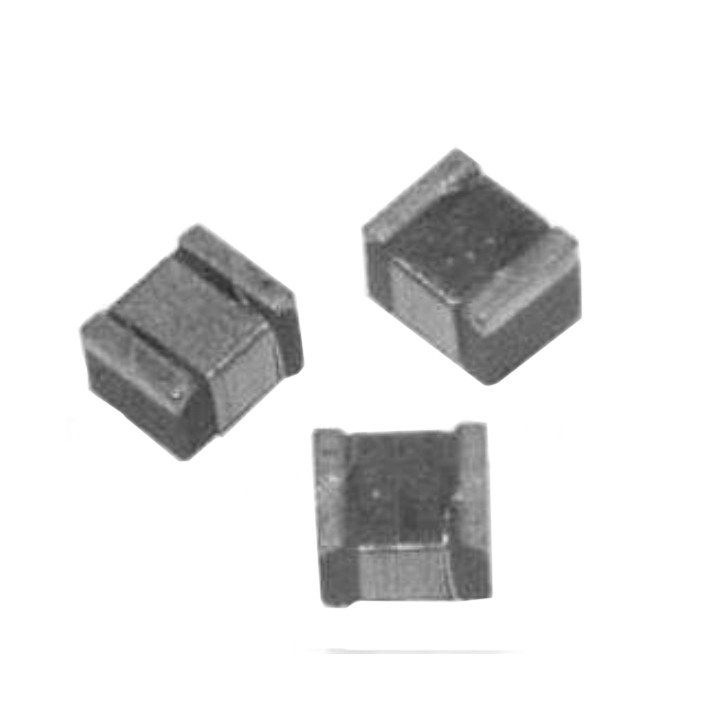

Image shown is a representation only
Manufacturer
Manufacturer No
36501E40NJTDG
Package
0402 (1005 Metric)
Packaging
Tape & Reel (TR)
Description
FIXED IND 40NH 320MA 440 MOHM
Detailed Description
40 nH Unshielded Wirewound Inductor 320 mA 440mOhm Max 0402 (1005 Metric)
Datasheet
Mfr
TE Connectivity Passive Product
Type
Wirewound
Series
3650, Sigma Inductors
Ratings
AEC-Q200
Q @ Freq
24 @ 250MHz
Packaging
Tape & Reel (TR)
Shielding
Unshielded
Tolerance
±5%
Inductance
40 nH
Mounting Type
Surface Mount
Package / Case
0402 (1005 Metric)
Material - Core
Ceramic
Size / Dimension
0.050" L x 0.030" W (1.27mm x 0.76mm)
DC Resistance (DCR)
440mOhm Max
Current Rating (Amps)
320 mA
Height - Seated (Max)
0.024" (0.61mm)
Operating Temperature
-40°C ~ 125°C
Supplier Device Package
0402 (1005 Metric)
Frequency - Self Resonant
2.24GHz
Inductance Frequency - Test
250 MHz
| Attribute | Value |
|---|---|
| Mfr | TE Connectivity Passive Product |
| Type | Wirewound |
| Series | 3650, Sigma Inductors |
| Ratings | AEC-Q200 |
| Q @ Freq | 24 @ 250MHz |
| Packaging | Tape & Reel (TR) |
| Shielding | Unshielded |
| Tolerance | ±5% |
| Inductance | 40 nH |
| Mounting Type | Surface Mount |
| Package / Case | 0402 (1005 Metric) |
| Material - Core | Ceramic |
| Size / Dimension | 0.050" L x 0.030" W (1.27mm x 0.76mm) |
| DC Resistance (DCR) | 440mOhm Max |
| Current Rating (Amps) | 320 mA |
| Height - Seated (Max) | 0.024" (0.61mm) |
| Operating Temperature | -40°C ~ 125°C |
| Supplier Device Package | 0402 (1005 Metric) |
| Frequency - Self Resonant | 2.24GHz |
| Inductance Frequency - Test | 250 MHz |
