Step1: Product

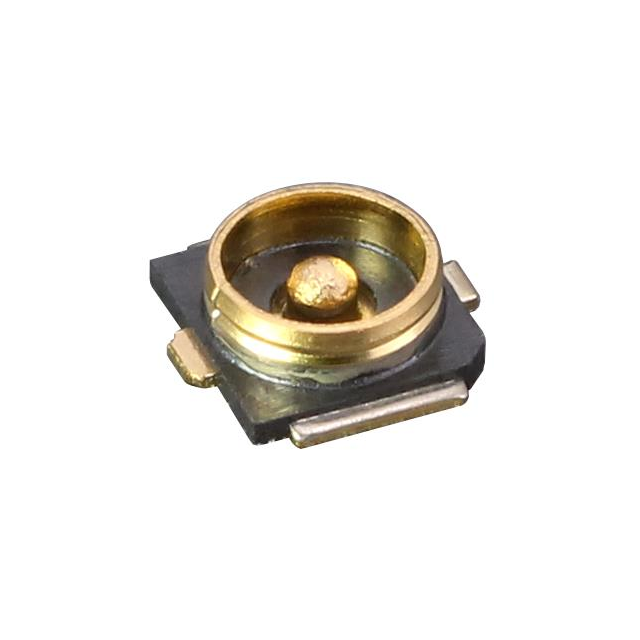

TE Connectivity Linx CONMHF4-SMD-G-T
Image shown is a representation only
Manufacturer
Manufacturer No
CONMHF4-SMD-G-T
Quantity
1,566
Availability
In Stock
Packaging
Tape & Reel (TR); Cut Tape (CT)
Description
CONN MHF4 JACK STR SMD
Detailed Description
I-PEX MHF4 Connector Jack, Male Pin 50 Ohms Surface Mount Solder
Datasheet
Mfr
TE Connectivity Linx
Impedance
50 Ohms
Packaging
Tape & Reel (TR); Cut Tape (CT)
Body Finish
Gold
Body Material
Copper Alloy
Housing Color
Black
Mating Cycles
30
Mounting Type
Surface Mount
Connector Type
Jack, Male Pin
Fastening Type
Snap-On
Voltage Rating
60 V
Connector Style
I-PEX MHF4
Frequency - Max
6 GHz
Number of Ports
1
Shield Termination
Solder
Base Product Number
CONMHF
Contact Termination
Solder
Dielectric Material
Liquid Crystal Polymer (LCP)
Operating Temperature
-65°C ~ 165°C
Center Contact Plating
Gold
Center Contact Material
Copper Alloy
| Attribute | Value |
|---|---|
| Mfr | TE Connectivity Linx |
| Impedance | 50 Ohms |
| Packaging | Tape & Reel (TR); Cut Tape (CT) |
| Body Finish | Gold |
| Body Material | Copper Alloy |
| Housing Color | Black |
| Mating Cycles | 30 |
| Mounting Type | Surface Mount |
| Connector Type | Jack, Male Pin |
| Fastening Type | Snap-On |
| Voltage Rating | 60 V |
| Connector Style | I-PEX MHF4 |
| Frequency - Max | 6 GHz |
| Number of Ports | 1 |
| Shield Termination | Solder |
| Base Product Number | CONMHF |
| Contact Termination | Solder |
| Dielectric Material | Liquid Crystal Polymer (LCP) |
| Operating Temperature | -65°C ~ 165°C |
| Center Contact Plating | Gold |
| Center Contact Material | Copper Alloy |
