Step1: Product

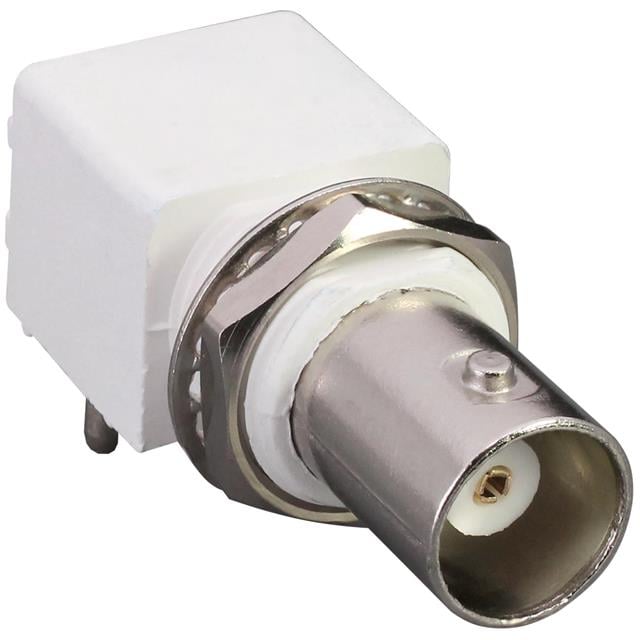

TE Connectivity Linx CONBNC002
Image shown is a representation only
Manufacturer
Manufacturer No
CONBNC002
Quantity
50
Availability
In Stock
Packaging
Bag
Description
BNC CONNECTOR RIGHT ANGLE JACK,
Detailed Description
BNC Connector Jack, Female Socket 50 Ohms Panel Mount, Through Hole, Right Angle Solder
DataSheet
Mfr
TE Connectivity Linx
Features
Isolated
Impedance
50 Ohms
Packaging
Bag
Body Finish
Nickel
Part Status
Active
Body Material
Zinc
Housing Color
Silver
Mounting Type
Panel Mount, Through Hole, Right Angle
Connector Type
Jack, Female Socket
Fastening Type
Bayonet Lock
Connector Style
BNC
Frequency - Max
1 GHz
Number of Ports
1
Mounting Feature
Bulkhead - Front Side Nut
Shield Termination
Solder
Base Product Number
CONBNC
Contact Termination
Solder
Dielectric Material
Polypropylene (PP)
Operating Temperature
-65°C ~ 165°C
Center Contact Plating
Gold
Center Contact Material
Phosphor Bronze
| Attribute | Value |
|---|---|
| Mfr | TE Connectivity Linx |
| Features | Isolated |
| Impedance | 50 Ohms |
| Packaging | Bag |
| Body Finish | Nickel |
| Part Status | Active |
| Body Material | Zinc |
| Housing Color | Silver |
| Mounting Type | Panel Mount, Through Hole, Right Angle |
| Connector Type | Jack, Female Socket |
| Fastening Type | Bayonet Lock |
| Connector Style | BNC |
| Frequency - Max | 1 GHz |
| Number of Ports | 1 |
| Mounting Feature | Bulkhead - Front Side Nut |
| Shield Termination | Solder |
| Base Product Number | CONBNC |
| Contact Termination | Solder |
| Dielectric Material | Polypropylene (PP) |
| Operating Temperature | -65°C ~ 165°C |
| Center Contact Plating | Gold |
| Center Contact Material | Phosphor Bronze |
