Step1: Product

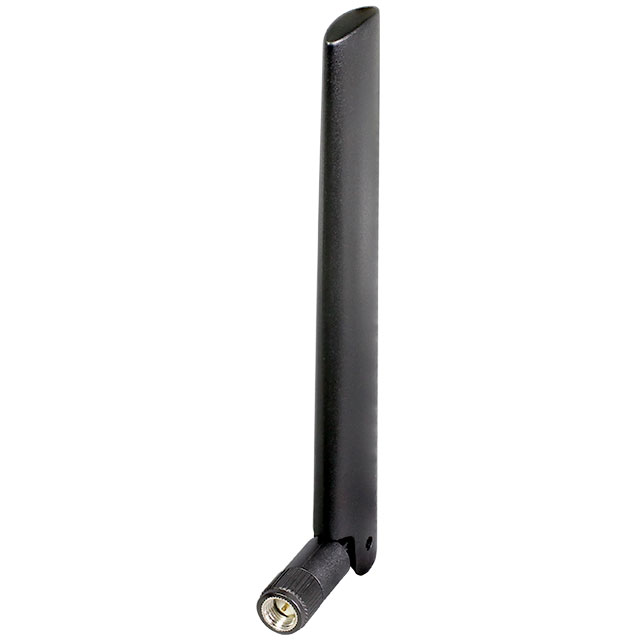

TE Connectivity Linx ANT-W63WS3-SMA
Image shown is a representation only
Manufacturer
Manufacturer No
ANT-W63WS3-SMA
Packaging
Bag
Description
RF ANT 2.4/5/6GHZ WIFI6 TILT SMA
Detailed Description
RF ANTENNA 802.11ax, U-NII, Wi-Fi 4, Wi-Fi 5, Wi-Fi 6, Wi-Fi 6E Blade, Tilt SMA Male Connector Mount
DataSheet
Gain
2.4dBi, 5dBi, 5.3dBi
VSWR
2.3, 1.8, 3.5
Series
W63WSx
Packaging
Bag
Part Status
Active
Power - Max
10 W
Return Loss
-8.1dB, -10.9dB, -5.1dB
Termination
SMA Male
Antenna Type
Blade, Tilt
Applications
802.11ax, U-NII, Wi-Fi 4, Wi-Fi 5, Wi-Fi 6, Wi-Fi 6E
Height (Max)
5.340" (135.70mm)
Manufacturer
TE Connectivity Linx
Mounting Type
Connector Mount
Frequency Group
UHF (2GHz ~ 3GHz), SHF (f > 4GHz)
Frequency Range
2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.85GHz, 5.925GHz ~ 7.125GHz
Number of Bands
3
RF Family/Standard
WiFi
Base Product Number
ANT-W63
Frequency (Center/Band)
2.4GHz, 5GHz, 6GHz
| Attribute | Value |
|---|---|
| Gain | 2.4dBi, 5dBi, 5.3dBi |
| VSWR | 2.3, 1.8, 3.5 |
| Series | W63WSx |
| Packaging | Bag |
| Part Status | Active |
| Power - Max | 10 W |
| Return Loss | -8.1dB, -10.9dB, -5.1dB |
| Termination | SMA Male |
| Antenna Type | Blade, Tilt |
| Applications | 802.11ax, U-NII, Wi-Fi 4, Wi-Fi 5, Wi-Fi 6, Wi-Fi 6E |
| Height (Max) | 5.340" (135.70mm) |
| Manufacturer | TE Connectivity Linx |
| Mounting Type | Connector Mount |
| Frequency Group | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) |
| Frequency Range | 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.85GHz, 5.925GHz ~ 7.125GHz |
| Number of Bands | 3 |
| RF Family/Standard | WiFi |
| Base Product Number | ANT-W63 |
| Frequency (Center/Band) | 2.4GHz, 5GHz, 6GHz |
