Step1: Product

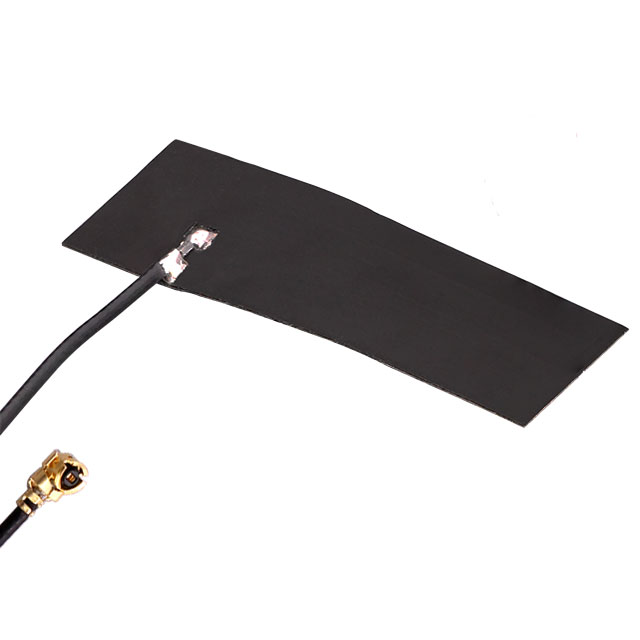

TE Connectivity Linx ANT-8/9-FPC-UFL-100
Image shown is a representation only
Manufacturer
Manufacturer No
ANT-8/9-FPC-UFL-100
Packaging
Bag
Description
RF ANT <960MHZ 5G FLEX ADHES UFL
Detailed Description
RF ANTENNA ISM, LoRaWAN, LPWA Flat Patch U.FL (UMCC), I-PEX MHF1 Adhesive
DataSheet
Gain
-3.2dBi, -3dBi
VSWR
2, 1.6
Series
FPC
Features
Cable - 100mm
Packaging
Bag
Part Status
Active
Power - Max
2 W
Return Loss
-9.5dB, -12.7dB
Termination
U.FL (UMCC), I-PEX MHF1
Antenna Type
Flat Patch
Applications
ISM, LoRaWAN, LPWA
Height (Max)
0.010" (0.20mm)
Manufacturer
TE Connectivity Linx
Mounting Type
Adhesive
Frequency Group
UHF (300MHz ~ 1GHz)
Frequency Range
862MHz ~ 876MHz, 902MHz ~ 930MHz
Number of Bands
2
RF Family/Standard
General ISM
Base Product Number
ANT-8
Frequency (Center/Band)
868MHz, 915MHz
| Attribute | Value |
|---|---|
| Gain | -3.2dBi, -3dBi |
| VSWR | 2, 1.6 |
| Series | FPC |
| Features | Cable - 100mm |
| Packaging | Bag |
| Part Status | Active |
| Power - Max | 2 W |
| Return Loss | -9.5dB, -12.7dB |
| Termination | U.FL (UMCC), I-PEX MHF1 |
| Antenna Type | Flat Patch |
| Applications | ISM, LoRaWAN, LPWA |
| Height (Max) | 0.010" (0.20mm) |
| Manufacturer | TE Connectivity Linx |
| Mounting Type | Adhesive |
| Frequency Group | UHF (300MHz ~ 1GHz) |
| Frequency Range | 862MHz ~ 876MHz, 902MHz ~ 930MHz |
| Number of Bands | 2 |
| RF Family/Standard | General ISM |
| Base Product Number | ANT-8 |
| Frequency (Center/Band) | 868MHz, 915MHz |
