Step1: Product

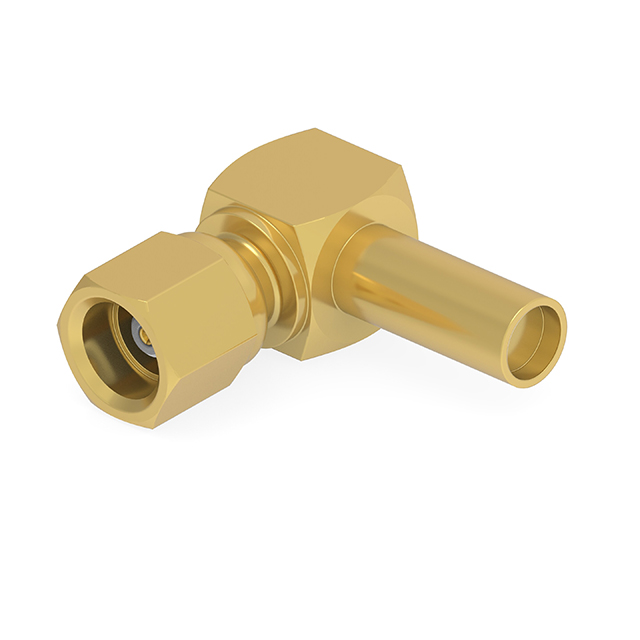

TE Connectivity Linx 2477172-1
Image shown is a representation only
Manufacturer
Manufacturer No
2477172-1
Packaging
Bag
Description
SMC PLUG RA CRIMP RG174 188A 316
Detailed Description
SMC Connector Jack, Male Pin 50 Ohms Free Hanging (In-Line), Right Angle Solder
Datasheet
Mfr
TE Connectivity Linx
Impedance
50 Ohms
Packaging
Bag
Body Finish
Gold
Cable Group
RG-174, 188, 316
Body Material
Brass
Housing Color
Gold
Mating Cycles
500
Mounting Type
Free Hanging (In-Line), Right Angle
Connector Type
Jack, Male Pin
Fastening Type
Snap-On
Connector Style
SMC
Frequency - Max
6 GHz
Number of Ports
1
Shield Termination
Crimp
Contact Termination
Solder
Dielectric Material
Polytetrafluoroethylene (PTFE)
Operating Temperature
-65°C ~ 165°C
Center Contact Plating
Gold
Center Contact Material
Beryllium Copper
| Attribute | Value |
|---|---|
| Mfr | TE Connectivity Linx |
| Impedance | 50 Ohms |
| Packaging | Bag |
| Body Finish | Gold |
| Cable Group | RG-174, 188, 316 |
| Body Material | Brass |
| Housing Color | Gold |
| Mating Cycles | 500 |
| Mounting Type | Free Hanging (In-Line), Right Angle |
| Connector Type | Jack, Male Pin |
| Fastening Type | Snap-On |
| Connector Style | SMC |
| Frequency - Max | 6 GHz |
| Number of Ports | 1 |
| Shield Termination | Crimp |
| Contact Termination | Solder |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Operating Temperature | -65°C ~ 165°C |
| Center Contact Plating | Gold |
| Center Contact Material | Beryllium Copper |
