Step1: Product

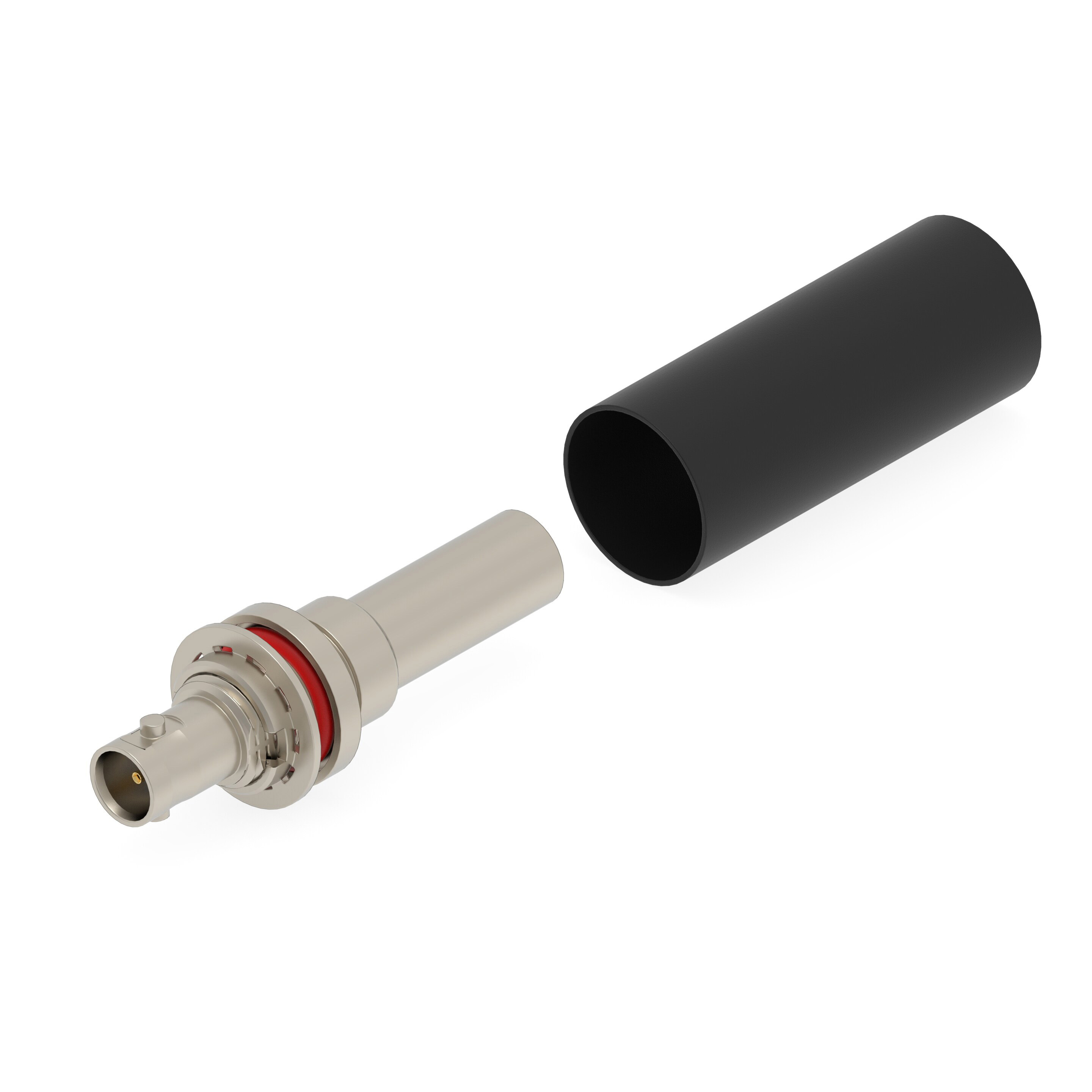

TE Connectivity Linx 2446194-1
Image shown is a representation only
Manufacturer
Manufacturer No
2446194-1
Packaging
Bag
Description
HIGH DENSITY BNC JACK IP67 STR 7
Detailed Description
BNC, HD Connector Jack, Female Socket 75 Ohms Panel Mount Crimp
Datasheet
Mfr
TE Connectivity Linx
Impedance
75 Ohms
Packaging
Bag
Body Finish
Nickel
Cable Group
Belden 1855A, 4855R
Body Material
Brass
Housing Color
Silver
Mounting Type
Panel Mount
Connector Type
Jack, Female Socket
Fastening Type
Bayonet Lock
Voltage Rating
335 V
Connector Style
BNC, HD
Frequency - Max
12 GHz
Number of Ports
1
Mounting Feature
Bulkhead - Front Side Nut
Ingress Protection
IP67 - Dust Tight, Waterproof
Shield Termination
Crimp
Contact Termination
Crimp
Dielectric Material
Polytetrafluoroethylene (PTFE)
Operating Temperature
-55°C ~ 125°C
Center Contact Plating
Gold
Center Contact Material
Beryllium Copper
| Attribute | Value |
|---|---|
| Mfr | TE Connectivity Linx |
| Impedance | 75 Ohms |
| Packaging | Bag |
| Body Finish | Nickel |
| Cable Group | Belden 1855A, 4855R |
| Body Material | Brass |
| Housing Color | Silver |
| Mounting Type | Panel Mount |
| Connector Type | Jack, Female Socket |
| Fastening Type | Bayonet Lock |
| Voltage Rating | 335 V |
| Connector Style | BNC, HD |
| Frequency - Max | 12 GHz |
| Number of Ports | 1 |
| Mounting Feature | Bulkhead - Front Side Nut |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Shield Termination | Crimp |
| Contact Termination | Crimp |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Operating Temperature | -55°C ~ 125°C |
| Center Contact Plating | Gold |
| Center Contact Material | Beryllium Copper |
