Step1: Product

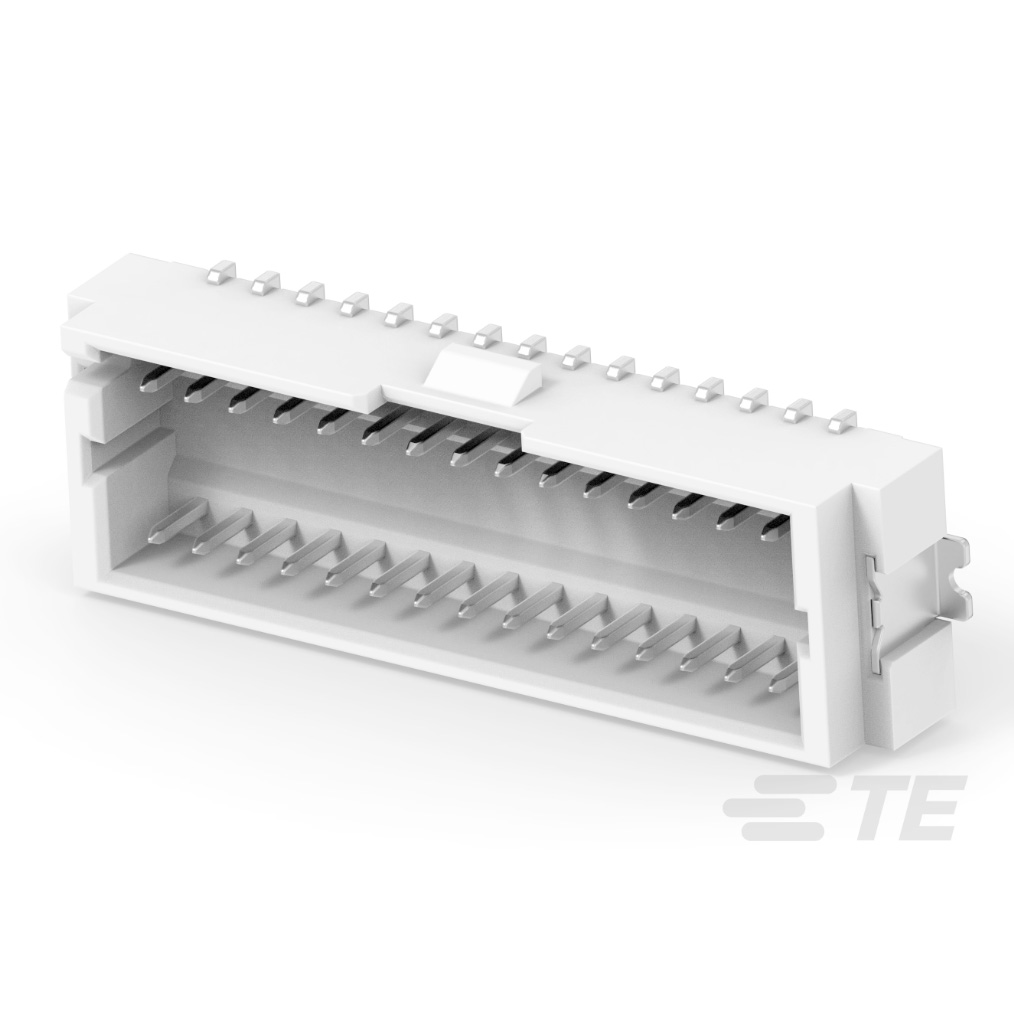

TE Connectivity Linx 2394520-3
Image shown is a representation only
Manufacturer
Manufacturer No
2394520-3
Packaging
Tape & Reel (TR); Cut Tape (CT);
Description
1.5P VERTICAL DUAL-ROW LOCKING H
Detailed Description
Connector Header Surface Mount 30 position 0.059" (1.50mm)
DataSheet
Mfr
TE Connectivity Linx
Style
Board to Cable/Wire
Series
High Performance Interconnect (HPI)
Features
Solder Retention
Packaging
Tape & Reel (TR); Cut Tape (CT); Digi-Reel®
Shrouding
Shrouded - 4 Wall
Part Status
Active
Termination
Solder
Contact Type
Male Pin
Contact Shape
Square
Mounting Type
Surface Mount
Connector Type
Header
Fastening Type
Locking Ramp
Number of Rows
2
Pitch - Mating
0.059" (1.50mm)
Voltage Rating
50VAC
Contact Material
Copper Alloy
Insulation Color
Natural
Insulation Height
0.205" (5.20mm)
Insulation Material
Thermoplastic
Number of Positions
30
Row Spacing - Mating
0.185" (4.70mm)
Contact Finish - Post
Tin
Current Rating (Amps)
Varies by Wire Gauge
Operating Temperature
-40°C ~ 105°C
Contact Finish - Mating
Tin
Number of Positions Loaded
All
Material Flammability Rating
UL94 V-0
Contact Finish Thickness - Post
100.0µin (2.54µm)
Contact Finish Thickness - Mating
100.0µin (2.54µm)
| Attribute | Value |
|---|---|
| Mfr | TE Connectivity Linx |
| Style | Board to Cable/Wire |
| Series | High Performance Interconnect (HPI) |
| Features | Solder Retention |
| Packaging | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |
| Shrouding | Shrouded - 4 Wall |
| Part Status | Active |
| Termination | Solder |
| Contact Type | Male Pin |
| Contact Shape | Square |
| Mounting Type | Surface Mount |
| Connector Type | Header |
| Fastening Type | Locking Ramp |
| Number of Rows | 2 |
| Pitch - Mating | 0.059" (1.50mm) |
| Voltage Rating | 50VAC |
| Contact Material | Copper Alloy |
| Insulation Color | Natural |
| Insulation Height | 0.205" (5.20mm) |
| Insulation Material | Thermoplastic |
| Number of Positions | 30 |
| Row Spacing - Mating | 0.185" (4.70mm) |
| Contact Finish - Post | Tin |
| Current Rating (Amps) | Varies by Wire Gauge |
| Operating Temperature | -40°C ~ 105°C |
| Contact Finish - Mating | Tin |
| Number of Positions Loaded | All |
| Material Flammability Rating | UL94 V-0 |
| Contact Finish Thickness - Post | 100.0µin (2.54µm) |
| Contact Finish Thickness - Mating | 100.0µin (2.54µm) |
