Step1: Product

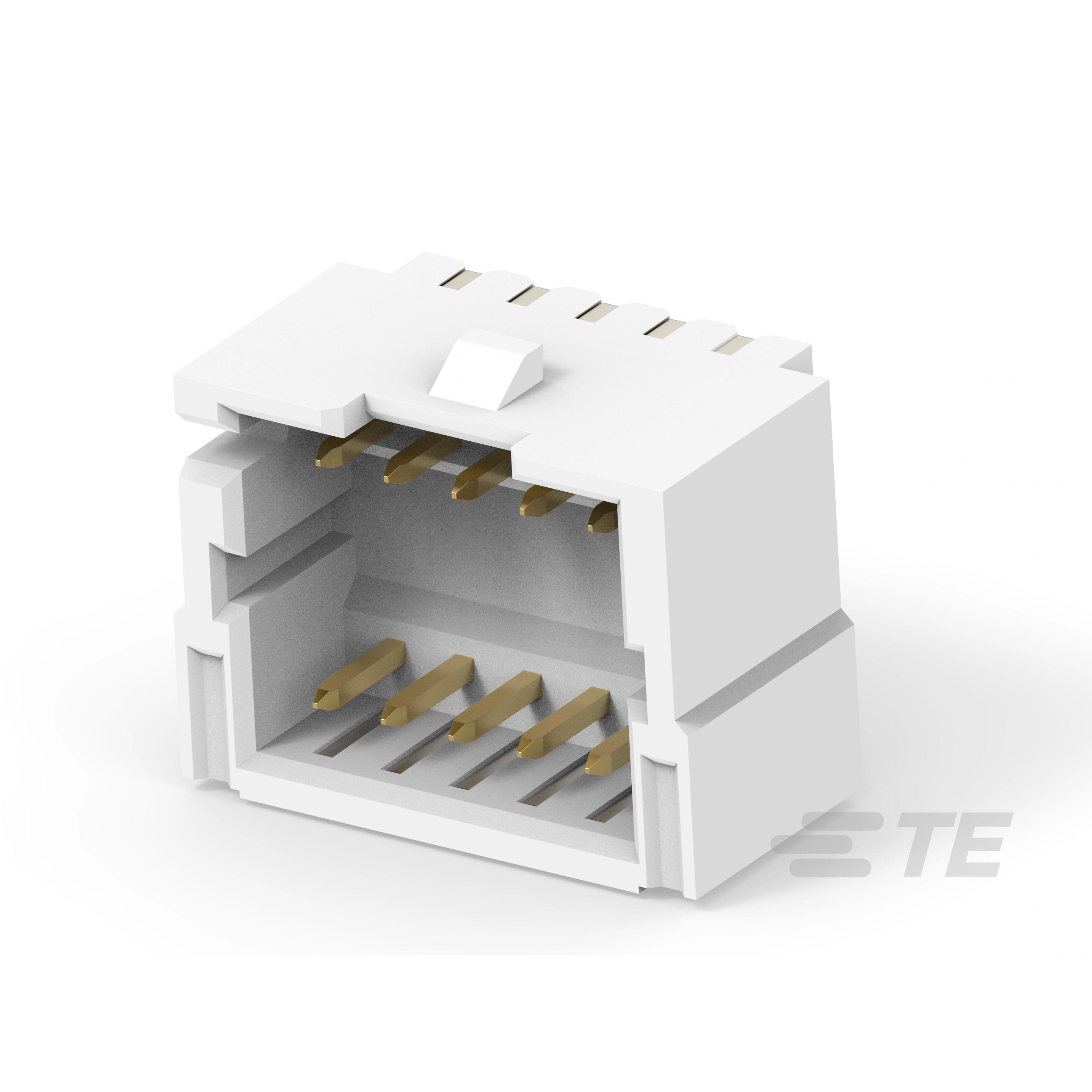

TE Connectivity Linx 5-2394521-1
Image shown is a representation only
Manufacturer
Manufacturer No
5-2394521-1
Packaging
Tape & Reel (TR); Cut Tape (CT)
Description
1.5P D/R R/A WTB W/LATCH 10POS
Detailed Description
Connector Header Surface Mount, Right Angle 10 position 0.059" (1.50mm)
Datasheet
Mfr
TE Connectivity Linx
Style
Board to Cable/Wire
Packaging
Tape & Reel (TR); Cut Tape (CT)
Shrouding
Shrouded - 4 Wall
Termination
Solder
Contact Type
Male Pin
Contact Shape
Square
Mounting Type
Surface Mount, Right Angle
Connector Type
Header
Fastening Type
Locking Ramp
Number of Rows
2
Pitch - Mating
0.059" (1.50mm)
Contact Material
Copper Alloy
Insulation Color
White
Insulation Height
0.362" (9.20mm)
Insulation Material
Thermoplastic
Number of Positions
10
Contact Finish - Post
Gold
Contact Finish - Mating
Gold
Number of Positions Loaded
All
Material Flammability Rating
UL94 V-0
Contact Finish Thickness - Post
Flash
Contact Finish Thickness - Mating
Flash
| Attribute | Value |
|---|---|
| Mfr | TE Connectivity Linx |
| Style | Board to Cable/Wire |
| Packaging | Tape & Reel (TR); Cut Tape (CT) |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Contact Type | Male Pin |
| Contact Shape | Square |
| Mounting Type | Surface Mount, Right Angle |
| Connector Type | Header |
| Fastening Type | Locking Ramp |
| Number of Rows | 2 |
| Pitch - Mating | 0.059" (1.50mm) |
| Contact Material | Copper Alloy |
| Insulation Color | White |
| Insulation Height | 0.362" (9.20mm) |
| Insulation Material | Thermoplastic |
| Number of Positions | 10 |
| Contact Finish - Post | Gold |
| Contact Finish - Mating | Gold |
| Number of Positions Loaded | All |
| Material Flammability Rating | UL94 V-0 |
| Contact Finish Thickness - Post | Flash |
| Contact Finish Thickness - Mating | Flash |
