TE Connectivity AMP Connectors V23136-L0031-D642

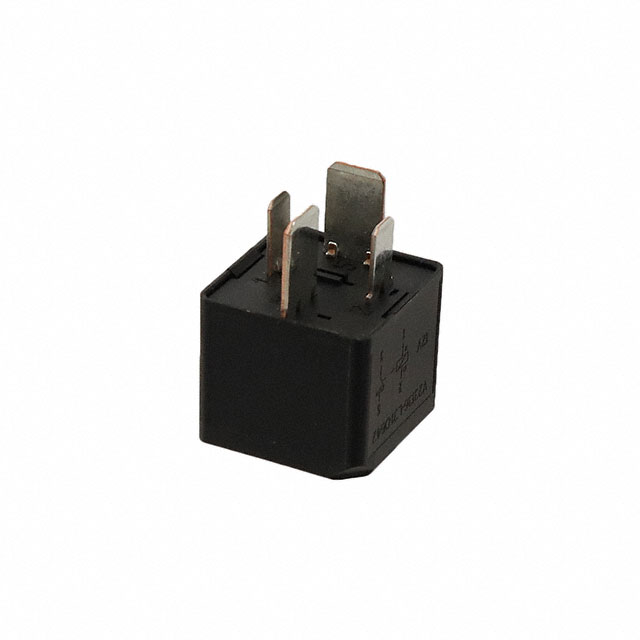

Image shown is a representation only
Manufacturer
Manufacturer No
V23136-L0031-D642
Packaging
Bulk
Description
POWER FA V23136
Detailed Description
Automotive Relay SPST-NO (1 Form A) 12VDC Coil Socketable
DataSheet
Series
F7 A
Features
IP54 - Dust Protected, Water Resistant
Coil Type
Latching, Single Coil
Packaging
Bulk
Coil Power
1.3W
Part Status
Active
Coil Current
480 mA
Coil Voltage
12VDC
Contact Form
SPST-NO (1 Form A)
Manufacturer
TE Connectivity AMP Connectors
Operate Time
1 ms
Release Time
2 ms
Mounting Type
Socketable
Coil Resistance
25 Ohms
Contact Material
Silver (Ag)
Switching Voltage
14VDC - Max
Termination Style
Plug In, Quick Connect - 0.250" (6.3mm)
Base Product Number
V23136
Must Operate Voltage
6 VDC
Operating Temperature
-40°C ~ 125°C
Contact Rating (Current)
70 A
| Attribute | Value |
|---|---|
| Series | F7 A |
| Features | IP54 - Dust Protected, Water Resistant |
| Coil Type | Latching, Single Coil |
| Packaging | Bulk |
| Coil Power | 1.3W |
| Part Status | Active |
| Coil Current | 480 mA |
| Coil Voltage | 12VDC |
| Contact Form | SPST-NO (1 Form A) |
| Manufacturer | TE Connectivity AMP Connectors |
| Operate Time | 1 ms |
| Release Time | 2 ms |
| Mounting Type | Socketable |
| Coil Resistance | 25 Ohms |
| Contact Material | Silver (Ag) |
| Switching Voltage | 14VDC - Max |
| Termination Style | Plug In, Quick Connect - 0.250" (6.3mm) |
| Base Product Number | V23136 |
| Must Operate Voltage | 6 VDC |
| Operating Temperature | -40°C ~ 125°C |
| Contact Rating (Current) | 70 A |
