Step1: Product

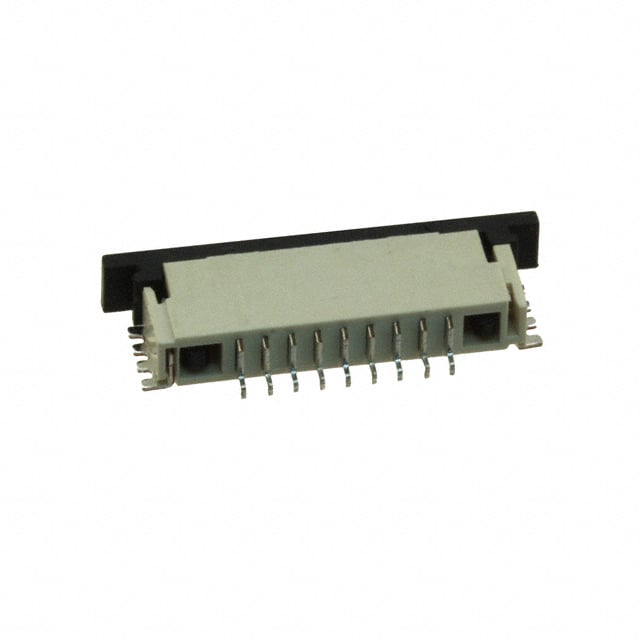

TE Connectivity AMP Connectors 84952-9
Image shown is a representation only
Manufacturer
Manufacturer No
84952-9
Quantity
100
Availability
In Stock
Packaging
Tape & Reel (TR); Cut Tape (CT);
Description
CONN FPC BOTTOM 9POS 1MM R/A
Detailed Description
9 Position FPC Connector Contacts, Bottom 0.039" (1.00mm) Surface Mount, Right Angle
DataSheet
Pitch
0.039" (1.00mm)
Features
Solder Retention, Zero Insertion Force (ZIF)
Packaging
Tape & Reel (TR); Cut Tape (CT); Digi-Reel®
Part Status
Active
Termination
Solder
Manufacturer
TE Connectivity AMP Connectors
Housing Color
Natural
Mounting Type
Surface Mount, Right Angle
Actuator Color
Black
Cable End Type
Straight
Contact Finish
Tin
Flat Flex Type
FPC
Voltage Rating
200V
Locking Feature
Slide Lock
Contact Material
Phosphor Bronze
Housing Material
Liquid Crystal Polymer (LCP), Glass Filled
Actuator Material
Polyamide (PA), Nylon, Glass Filled
FFC, FCB Thickness
0.30mm
Height Above Board
0.101" (2.56mm)
Base Product Number
84952
Number of Positions
9
Current Rating (Amps)
1A
Operating Temperature
-40°C ~ 85°C
Connector/Contact Type
Contacts, Bottom
Contact Finish Thickness
78.7µin (2.00µm)
Material Flammability Rating
UL94 V-0
| Attribute | Value |
|---|---|
| Pitch | 0.039" (1.00mm) |
| Features | Solder Retention, Zero Insertion Force (ZIF) |
| Packaging | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |
| Part Status | Active |
| Termination | Solder |
| Manufacturer | TE Connectivity AMP Connectors |
| Housing Color | Natural |
| Mounting Type | Surface Mount, Right Angle |
| Actuator Color | Black |
| Cable End Type | Straight |
| Contact Finish | Tin |
| Flat Flex Type | FPC |
| Voltage Rating | 200V |
| Locking Feature | Slide Lock |
| Contact Material | Phosphor Bronze |
| Housing Material | Liquid Crystal Polymer (LCP), Glass Filled |
| Actuator Material | Polyamide (PA), Nylon, Glass Filled |
| FFC, FCB Thickness | 0.30mm |
| Height Above Board | 0.101" (2.56mm) |
| Base Product Number | 84952 |
| Number of Positions | 9 |
| Current Rating (Amps) | 1A |
| Operating Temperature | -40°C ~ 85°C |
| Connector/Contact Type | Contacts, Bottom |
| Contact Finish Thickness | 78.7µin (2.00µm) |
| Material Flammability Rating | UL94 V-0 |
