Step1: Product

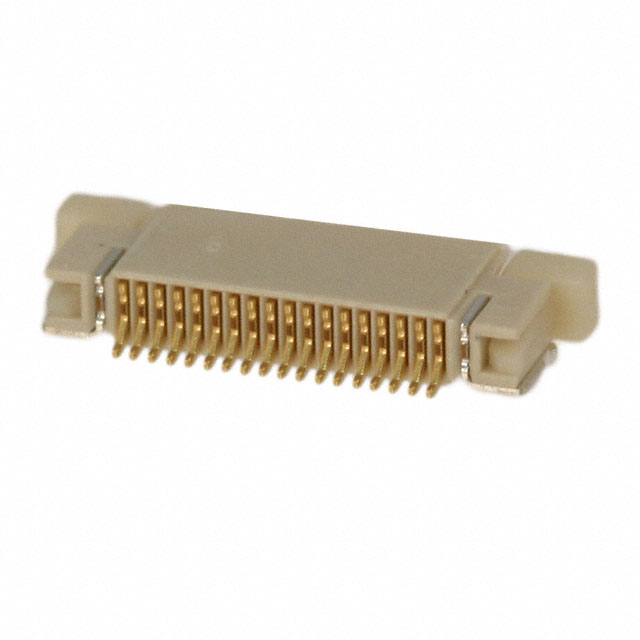

TE Connectivity AMP Connectors 1-1734839-8
Image shown is a representation only
Manufacturer
Manufacturer No
1-1734839-8
Quantity
1584
Availability
In Stock
Packaging
Tape & Reel (TR); Cut Tape (CT)
Description
CONN FPC TOP 18POS 0.5MM R/A
Detailed Description
18 Position FPC Connector Contacts, Top 0.020" (0.50mm) Surface Mount, Right Angle
DataSheet
Pitch
0.020" (0.50mm)
Features
Solder Retention, Zero Insertion Force (ZIF)
Packaging
Tape & Reel (TR); Cut Tape (CT)
Part Status
Obsolete
Termination
Solder
Manufacturer
TE Connectivity AMP Connectors
Housing Color
Natural
Mounting Type
Surface Mount, Right Angle
Actuator Color
Ivory
Cable End Type
Tapered
Contact Finish
Gold
Flat Flex Type
FPC
Voltage Rating
250V
Locking Feature
Slide Lock
Contact Material
Phosphor Bronze
Housing Material
Thermoplastic
Actuator Material
Thermoplastic
FFC, FCB Thickness
0.30mm
Height Above Board
0.081" (2.05mm)
Base Product Number
1734839
Number of Positions
18
Current Rating (Amps)
0.5A
Operating Temperature
-20°C ~ 85°C
Connector/Contact Type
Contacts, Top
Contact Finish Thickness
Flash
Material Flammability Rating
UL94 V-0
| Attribute | Value |
|---|---|
| Pitch | 0.020" (0.50mm) |
| Features | Solder Retention, Zero Insertion Force (ZIF) |
| Packaging | Tape & Reel (TR); Cut Tape (CT) |
| Part Status | Obsolete |
| Termination | Solder |
| Manufacturer | TE Connectivity AMP Connectors |
| Housing Color | Natural |
| Mounting Type | Surface Mount, Right Angle |
| Actuator Color | Ivory |
| Cable End Type | Tapered |
| Contact Finish | Gold |
| Flat Flex Type | FPC |
| Voltage Rating | 250V |
| Locking Feature | Slide Lock |
| Contact Material | Phosphor Bronze |
| Housing Material | Thermoplastic |
| Actuator Material | Thermoplastic |
| FFC, FCB Thickness | 0.30mm |
| Height Above Board | 0.081" (2.05mm) |
| Base Product Number | 1734839 |
| Number of Positions | 18 |
| Current Rating (Amps) | 0.5A |
| Operating Temperature | -20°C ~ 85°C |
| Connector/Contact Type | Contacts, Top |
| Contact Finish Thickness | Flash |
| Material Flammability Rating | UL94 V-0 |
