Step1: Product

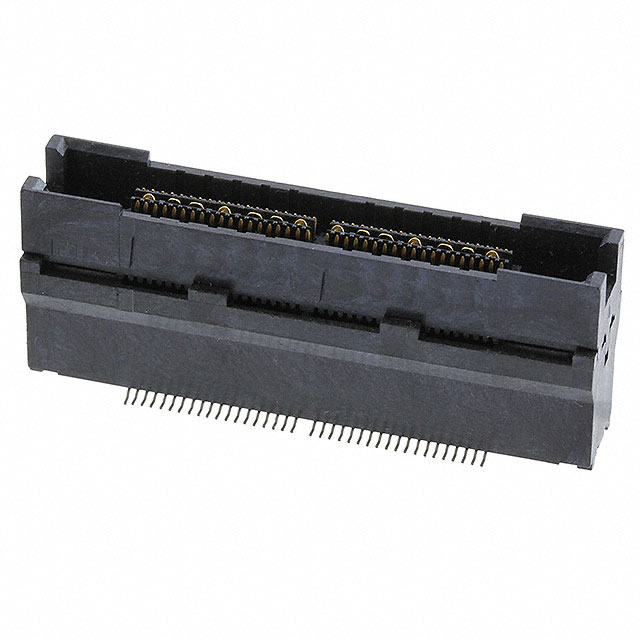

TE Connectivity AMP Connectors 767130-2
Image shown is a representation only
Manufacturer
Manufacturer No
767130-2
Packaging
Tube
Description
CONN RCPT 76POS SMD GOLD
Detailed Description
76 Position Connector Receptacle, Center Strip Contacts Surface Mount Gold
Datasheet
Pitch
0.025" (0.64mm)
Series
MICTOR
Features
Board Guide, Ground Bus (Plane)
Packaging
Tube
Manufacturer
TE Connectivity AMP Connectors
Mounting Type
Surface Mount
Connector Type
Receptacle, Center Strip Contacts
Contact Finish
Gold
Number of Rows
2
Height Above Board
0.587" (14.91mm)
Base Product Number
767130
Number of Positions
76
Mated Stacking Heights
15.62mm, 18mm, 20mm, 21.6mm, 27mm, 27.8mm, 29mm, 31.9mm
Contact Finish Thickness
30.0µin (0.76µm)
| Attribute | Value |
|---|---|
| Pitch | 0.025" (0.64mm) |
| Series | MICTOR |
| Features | Board Guide, Ground Bus (Plane) |
| Packaging | Tube |
| Manufacturer | TE Connectivity AMP Connectors |
| Mounting Type | Surface Mount |
| Connector Type | Receptacle, Center Strip Contacts |
| Contact Finish | Gold |
| Number of Rows | 2 |
| Height Above Board | 0.587" (14.91mm) |
| Base Product Number | 767130 |
| Number of Positions | 76 |
| Mated Stacking Heights | 15.62mm, 18mm, 20mm, 21.6mm, 27mm, 27.8mm, 29mm, 31.9mm |
| Contact Finish Thickness | 30.0µin (0.76µm) |
