Step1: Product

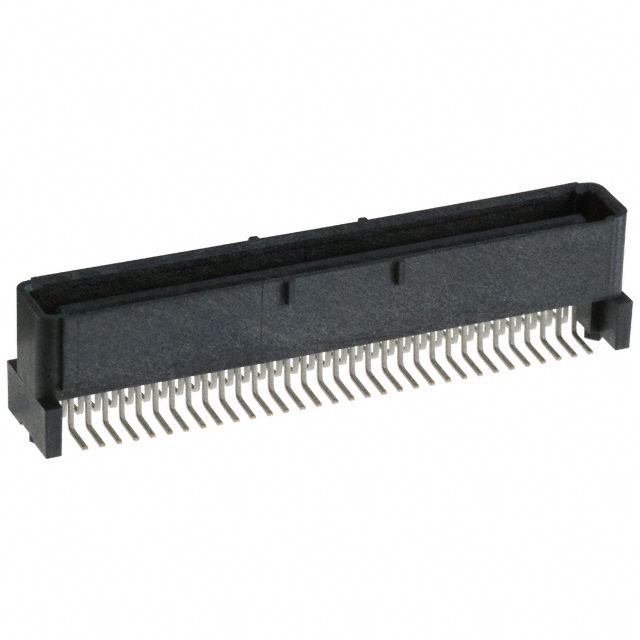

TE Connectivity AMP Connectors 5120527-1
Image shown is a representation only
Manufacturer
Manufacturer No
5120527-1
Quantity
2704
Availability
In Stock
Packaging
Tape & Reel (TR); Cut Tape (CT);
Description
CONN PLUG 64POS SMD GOLD
Detailed Description
64 Position Connector Plug, Center Strip Contacts Surface Mount Gold
DataSheet
Pitch
0.039" (1.00mm)
Series
Free Height (FH) IEEE 1386, PMC
Features
Board Guide
Packaging
Tape & Reel (TR); Cut Tape (CT); Digi-Reel®
Part Status
Active
Manufacturer
TE Connectivity AMP Connectors
Mounting Type
Surface Mount
Connector Type
Plug, Center Strip Contacts
Contact Finish
Gold
Number of Rows
2
Height Above Board
0.329" (8.35mm)
Base Product Number
5120527
Number of Positions
64
Mated Stacking Heights
10mm, 12mm, 13mm, 15mm
Contact Finish Thickness
30.0µin (0.76µm)
| Attribute | Value |
|---|---|
| Pitch | 0.039" (1.00mm) |
| Series | Free Height (FH) IEEE 1386, PMC |
| Features | Board Guide |
| Packaging | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |
| Part Status | Active |
| Manufacturer | TE Connectivity AMP Connectors |
| Mounting Type | Surface Mount |
| Connector Type | Plug, Center Strip Contacts |
| Contact Finish | Gold |
| Number of Rows | 2 |
| Height Above Board | 0.329" (8.35mm) |
| Base Product Number | 5120527 |
| Number of Positions | 64 |
| Mated Stacking Heights | 10mm, 12mm, 13mm, 15mm |
| Contact Finish Thickness | 30.0µin (0.76µm) |
