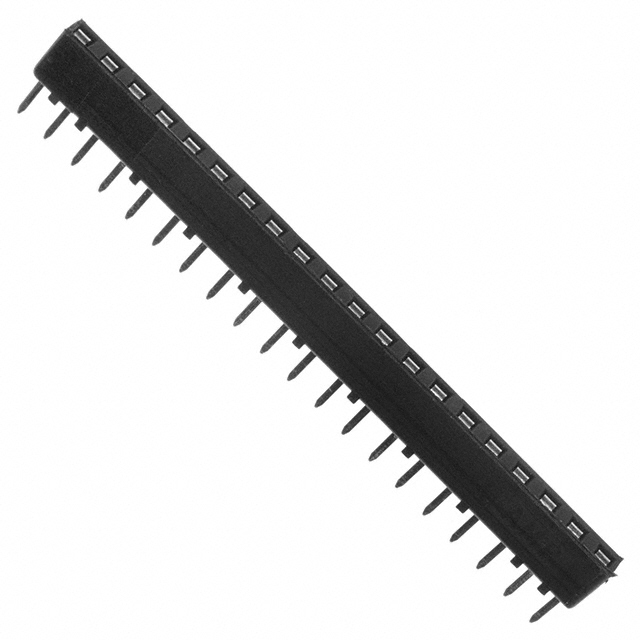

TE Connectivity AMP Connectors 643652-1
Image shown is a representation only
Manufacturer
Manufacturer No
643652-1
Packaging
Tray
Description
CONN SOCKET SIP 20POS TIN
Detailed Description
20 (1 x 20) Pos SIP Socket Tin Through Hole
DataSheet
Type
SIP
Series
Diplomate DL
Features
Closed Frame
Packaging
Tray
Part Status
Obsolete
Termination
Solder
Manufacturer
TE Connectivity AMP Connectors
Pitch - Post
0.100" (2.54mm)
Mounting Type
Through Hole
Pitch - Mating
0.100" (2.54mm)
Housing Material
Thermoplastic, Glass Filled
Base Product Number
643652
Contact Finish - Post
Tin
Operating Temperature
-55°C ~ 105°C
Contact Finish - Mating
Tin
Contact Material - Post
Beryllium Copper
Termination Post Length
0.130" (3.30mm)
Contact Material - Mating
Beryllium Copper
Material Flammability Rating
UL94 V-0
Number of Positions or Pins (Grid)
20 (1 x 20)
| Attribute | Value |
|---|---|
| Type | SIP |
| Series | Diplomate DL |
| Features | Closed Frame |
| Packaging | Tray |
| Part Status | Obsolete |
| Termination | Solder |
| Manufacturer | TE Connectivity AMP Connectors |
| Pitch - Post | 0.100" (2.54mm) |
| Mounting Type | Through Hole |
| Pitch - Mating | 0.100" (2.54mm) |
| Housing Material | Thermoplastic, Glass Filled |
| Base Product Number | 643652 |
| Contact Finish - Post | Tin |
| Operating Temperature | -55°C ~ 105°C |
| Contact Finish - Mating | Tin |
| Contact Material - Post | Beryllium Copper |
| Termination Post Length | 0.130" (3.30mm) |
| Contact Material - Mating | Beryllium Copper |
| Material Flammability Rating | UL94 V-0 |
| Number of Positions or Pins (Grid) | 20 (1 x 20) |
