Step1: Product

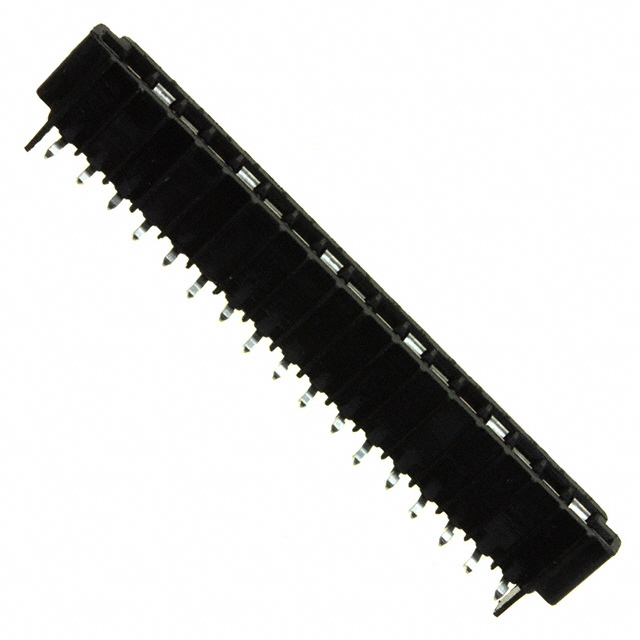

TE Connectivity AMP Connectors 6-487508-8
Image shown is a representation only
Manufacturer
Manufacturer No
6-487508-8
Packaging
Bulk
Description
CONN FFC FPC TOP 17POS 2.54MM RA
Detailed Description
17 Position FFC, FPC Connector Contacts, Top 0.100" (2.54mm) Through Hole, Right Angle
DataSheet
Pitch
0.100" (2.54mm)
Series
Triomate
Packaging
Bulk
Part Status
Active
Termination
Kinked Pin
Manufacturer
TE Connectivity AMP Connectors
Housing Color
Black
Mating Cycles
25
Mounting Type
Through Hole, Right Angle
Contact Finish
Tin
Flat Flex Type
FFC, FPC
Voltage Rating
250V
Contact Material
Phosphor Bronze
Housing Material
Polyester Thermoplastic, Glass Filled
FFC, FCB Thickness
0.13mm ~ 0.38mm
Height Above Board
0.190" (4.83mm)
Base Product Number
487508
Number of Positions
17
Current Rating (Amps)
1A
Operating Temperature
-55°C ~ 105°C
Connector/Contact Type
Contacts, Top
Contact Finish Thickness
196.9µin (5.00µm)
Material Flammability Rating
UL94 V-0
| Attribute | Value |
|---|---|
| Pitch | 0.100" (2.54mm) |
| Series | Triomate |
| Packaging | Bulk |
| Part Status | Active |
| Termination | Kinked Pin |
| Manufacturer | TE Connectivity AMP Connectors |
| Housing Color | Black |
| Mating Cycles | 25 |
| Mounting Type | Through Hole, Right Angle |
| Contact Finish | Tin |
| Flat Flex Type | FFC, FPC |
| Voltage Rating | 250V |
| Contact Material | Phosphor Bronze |
| Housing Material | Polyester Thermoplastic, Glass Filled |
| FFC, FCB Thickness | 0.13mm ~ 0.38mm |
| Height Above Board | 0.190" (4.83mm) |
| Base Product Number | 487508 |
| Number of Positions | 17 |
| Current Rating (Amps) | 1A |
| Operating Temperature | -55°C ~ 105°C |
| Connector/Contact Type | Contacts, Top |
| Contact Finish Thickness | 196.9µin (5.00µm) |
| Material Flammability Rating | UL94 V-0 |
