Step1: Product

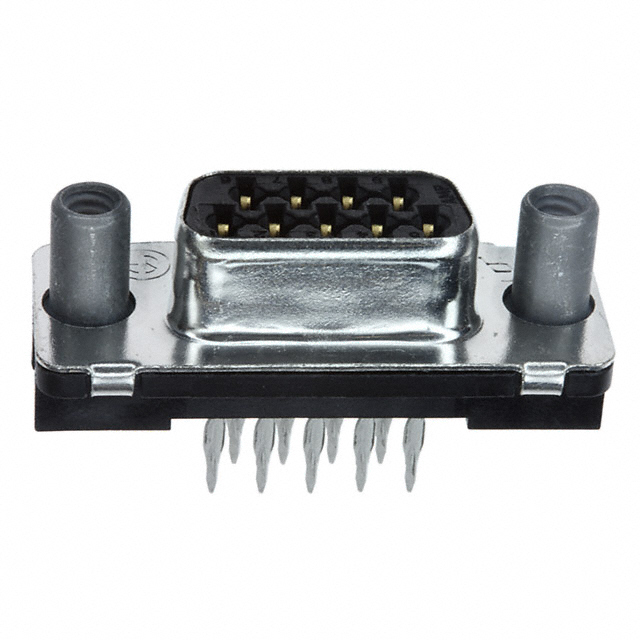

TE Connectivity AMP Connectors 5747091-2
Image shown is a representation only
Manufacturer
Manufacturer No
5747091-2
Packaging
Bulk
Description
CONN D-SUB RCPT 9POS VERT PRESS
Detailed Description
9 Position D-Sub Receptacle, Female Sockets Connector
Datasheet
Mfr
TE Connectivity AMP Connectors
Color
Black
Series
AMPLIMITE HD-20
Packaging
Bulk
Termination
Press-Fit
Contact Type
Signal
Mounting Type
Through Hole
Connector Type
Receptacle, Female Sockets
Contact Finish
Gold
Flange Feature
Mating Side, Female Screwlock (4-40)
Number of Rows
2
Connector Style
D-Sub
Contact Material
Copper Alloy
Base Product Number
5747091
Number of Positions
9
Operating Temperature
-55°C ~ 105°C
Shell Material, Finish
Steel, Tin Plated
Material Flammability Rating
UL94 V-0
Shell Size, Connector Layout
1 (DE, E)
| Attribute | Value |
|---|---|
| Mfr | TE Connectivity AMP Connectors |
| Color | Black |
| Series | AMPLIMITE HD-20 |
| Packaging | Bulk |
| Termination | Press-Fit |
| Contact Type | Signal |
| Mounting Type | Through Hole |
| Connector Type | Receptacle, Female Sockets |
| Contact Finish | Gold |
| Flange Feature | Mating Side, Female Screwlock (4-40) |
| Number of Rows | 2 |
| Connector Style | D-Sub |
| Contact Material | Copper Alloy |
| Base Product Number | 5747091 |
| Number of Positions | 9 |
| Operating Temperature | -55°C ~ 105°C |
| Shell Material, Finish | Steel, Tin Plated |
| Material Flammability Rating | UL94 V-0 |
| Shell Size, Connector Layout | 1 (DE, E) |
