Step1: Product

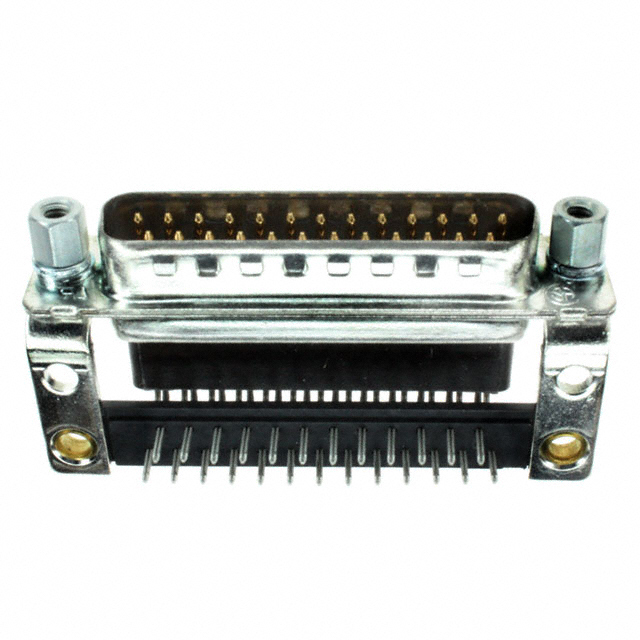

TE Connectivity AMP Connectors 5747022-2
Image shown is a representation only
Manufacturer
Manufacturer No
5747022-2
Packaging
Bulk
Description
CONN D-SUB PLUG 25POS R/A SOLDER
Detailed Description
25 Position D-Sub Plug, Male Pins Connector
Datasheet
Mfr
TE Connectivity AMP Connectors
Color
Black
Series
AMPLIMITE HD-20
Features
Grounding Indents, Mounting Brackets
Packaging
Bulk
Termination
Solder
Contact Type
Signal
Mounting Type
Through Hole, Right Angle
Connector Type
Plug, Male Pins
Contact Finish
Gold
Flange Feature
Mating Side, Female Screwlock (4-40)
Number of Rows
2
Voltage Rating
125V
Backset Spacing
0.545" (13.84mm)
Connector Style
D-Sub
Contact Material
Brass
Base Product Number
5747022
Dielectric Material
Polyamide (PA), Nylon, Glass Filled
Number of Positions
25
Current Rating (Amps)
6A
Operating Temperature
-55°C ~ 105°C
Shell Material, Finish
Steel, Tin Plated
Contact Finish Thickness
Flash
Material Flammability Rating
UL94 V-0
Shell Size, Connector Layout
3 (DB, B)
| Attribute | Value |
|---|---|
| Mfr | TE Connectivity AMP Connectors |
| Color | Black |
| Series | AMPLIMITE HD-20 |
| Features | Grounding Indents, Mounting Brackets |
| Packaging | Bulk |
| Termination | Solder |
| Contact Type | Signal |
| Mounting Type | Through Hole, Right Angle |
| Connector Type | Plug, Male Pins |
| Contact Finish | Gold |
| Flange Feature | Mating Side, Female Screwlock (4-40) |
| Number of Rows | 2 |
| Voltage Rating | 125V |
| Backset Spacing | 0.545" (13.84mm) |
| Connector Style | D-Sub |
| Contact Material | Brass |
| Base Product Number | 5747022 |
| Dielectric Material | Polyamide (PA), Nylon, Glass Filled |
| Number of Positions | 25 |
| Current Rating (Amps) | 6A |
| Operating Temperature | -55°C ~ 105°C |
| Shell Material, Finish | Steel, Tin Plated |
| Contact Finish Thickness | Flash |
| Material Flammability Rating | UL94 V-0 |
| Shell Size, Connector Layout | 3 (DB, B) |
