Step1: Product
TE Connectivity AMP Connectors 5145089-1

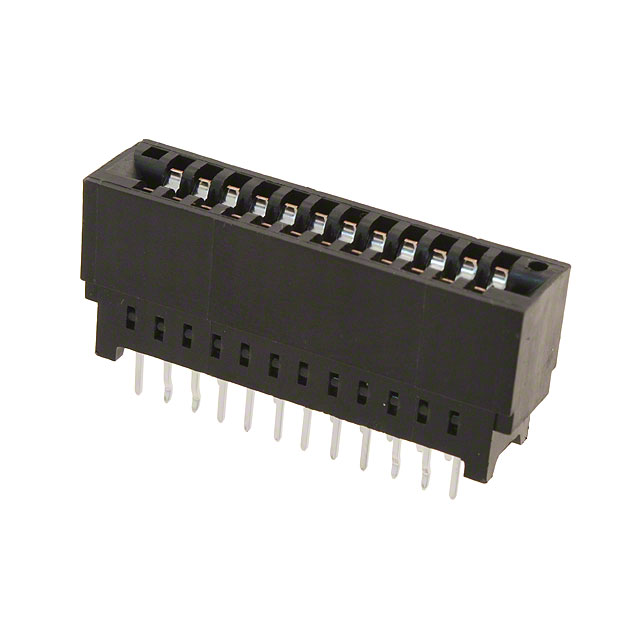

Image shown is a representation only
Manufacturer
Manufacturer No
5145089-1
Packaging
Tray
Description
CONN EDGE DUAL FMALE 24POS 0.100
Detailed Description
24 Position Female Connector Non Specified - Dual Edge Gold 0.100" (2.54mm) Brown
Datasheet
Color
Brown
Pitch
0.100" (2.54mm)
Gender
Female
Series
Standard Edge II
Features
Board Lock
Read Out
Dual
Card Type
Non Specified - Dual Edge
Packaging
Tray
Termination
Solder
Manufacturer
TE Connectivity AMP Connectors
Mounting Type
Through Hole, Right Angle
Card Thickness
0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Contact Finish
Gold
Number of Rows
2
Contact Material
Phosphor Bronze
Base Product Number
5145089
Number of Positions
24
Material - Insulation
Polyester, Glass Filled
Operating Temperature
-55°C ~ 85°C
Contact Finish Thickness
30.0µin (0.76µm)
| Attribute | Value |
|---|---|
| Color | Brown |
| Pitch | 0.100" (2.54mm) |
| Gender | Female |
| Series | Standard Edge II |
| Features | Board Lock |
| Read Out | Dual |
| Card Type | Non Specified - Dual Edge |
| Packaging | Tray |
| Termination | Solder |
| Manufacturer | TE Connectivity AMP Connectors |
| Mounting Type | Through Hole, Right Angle |
| Card Thickness | 0.054" ~ 0.070" (1.37mm ~ 1.78mm) |
| Contact Finish | Gold |
| Number of Rows | 2 |
| Contact Material | Phosphor Bronze |
| Base Product Number | 5145089 |
| Number of Positions | 24 |
| Material - Insulation | Polyester, Glass Filled |
| Operating Temperature | -55°C ~ 85°C |
| Contact Finish Thickness | 30.0µin (0.76µm) |
