Step1: Product

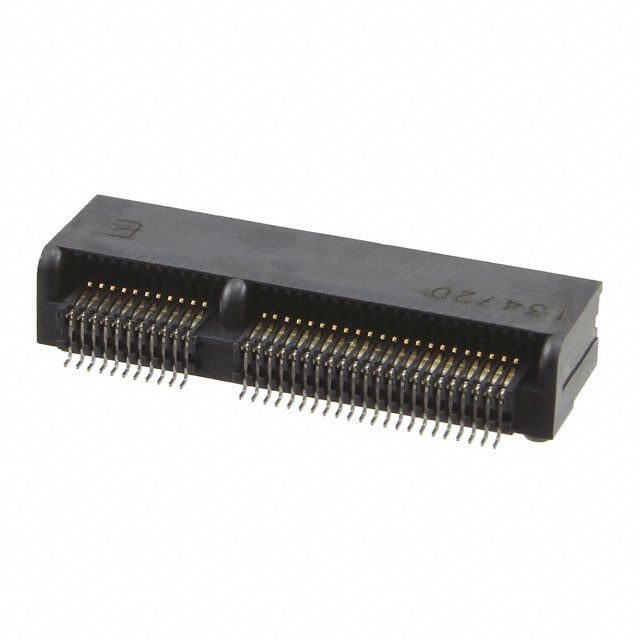

TE Connectivity AMP Connectors 2199230-4
Image shown is a representation only
Manufacturer
Manufacturer No
2199230-4
Quantity
1444
Availability
In Stock
Packaging
Tape & Reel (TR); Cut Tape (CT);
Description
CONN M.2 FMALE 67POS 0.020 GOLD
Detailed Description
67 Position Female Connector M.2 (NGFF) Mini Card Gold 0.020" (0.50mm) Black
DataSheet
Color
Black
Pitch
0.020" (0.50mm)
Gender
Female
Features
Board Guide, Keyed
Read Out
Dual
Card Type
M.2 (NGFF) Mini Card
Packaging
Tape & Reel (TR); Cut Tape (CT); Digi-Reel®
Part Status
Active
Termination
Solder
Manufacturer
TE Connectivity AMP Connectors
Mounting Type
Surface Mount, Right Angle
Contact Finish
Gold
Number of Rows
2
Contact Material
Copper Alloy
Base Product Number
2199230
Number of Positions
67
Material - Insulation
Thermoplastic
Operating Temperature
-40°C ~ 80°C
Contact Finish Thickness
15.0µin (0.38µm)
| Attribute | Value |
|---|---|
| Color | Black |
| Pitch | 0.020" (0.50mm) |
| Gender | Female |
| Features | Board Guide, Keyed |
| Read Out | Dual |
| Card Type | M.2 (NGFF) Mini Card |
| Packaging | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |
| Part Status | Active |
| Termination | Solder |
| Manufacturer | TE Connectivity AMP Connectors |
| Mounting Type | Surface Mount, Right Angle |
| Contact Finish | Gold |
| Number of Rows | 2 |
| Contact Material | Copper Alloy |
| Base Product Number | 2199230 |
| Number of Positions | 67 |
| Material - Insulation | Thermoplastic |
| Operating Temperature | -40°C ~ 80°C |
| Contact Finish Thickness | 15.0µin (0.38µm) |
