Step1: Product

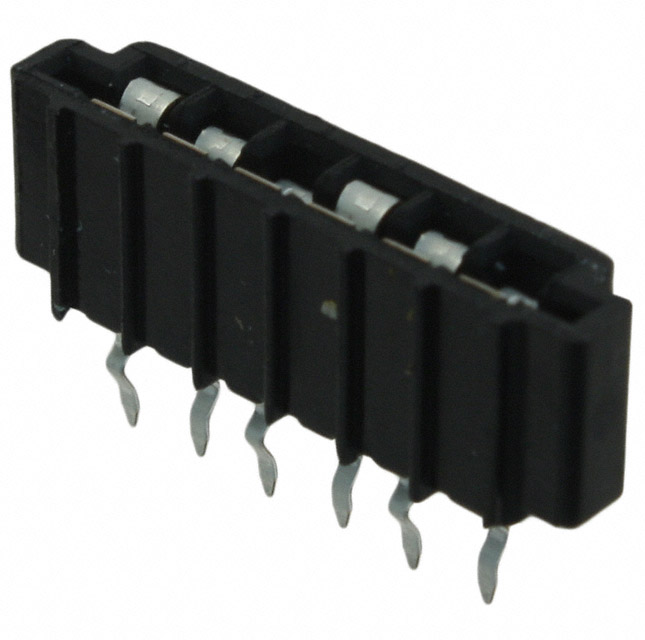

TE Connectivity AMP Connectors 5-520315-6
Image shown is a representation only
Manufacturer
Manufacturer No
5-520315-6
Quantity
100
Availability
In Stock
Packaging
Tray
Description
CONN FFC VERT 6POS 2.54MM PCB
Detailed Description
6 Position FFC, FPC Connector Contacts, Vertical - 1 Sided 0.100" (2.54mm) Through Hole
Datasheet
Pitch
0.100" (2.54mm)
Series
Triomate
Packaging
Tray
Termination
Kinked Pin
Manufacturer
TE Connectivity AMP Connectors
Housing Color
Black
Mating Cycles
25
Mounting Type
Through Hole
Cable End Type
Straight
Contact Finish
Tin
Flat Flex Type
FFC, FPC
Voltage Rating
250V
Contact Material
Phosphor Bronze
Housing Material
Polyester Thermoplastic, Glass Filled
FFC, FCB Thickness
0.13mm ~ 0.38mm
Height Above Board
0.273" (6.93mm)
Base Product Number
520315
Number of Positions
6
Current Rating (Amps)
1A
Operating Temperature
-55°C ~ 105°C
Connector/Contact Type
Contacts, Vertical - 1 Sided
Material Flammability Rating
UL94 V-0
| Attribute | Value |
|---|---|
| Pitch | 0.100" (2.54mm) |
| Series | Triomate |
| Packaging | Tray |
| Termination | Kinked Pin |
| Manufacturer | TE Connectivity AMP Connectors |
| Housing Color | Black |
| Mating Cycles | 25 |
| Mounting Type | Through Hole |
| Cable End Type | Straight |
| Contact Finish | Tin |
| Flat Flex Type | FFC, FPC |
| Voltage Rating | 250V |
| Contact Material | Phosphor Bronze |
| Housing Material | Polyester Thermoplastic, Glass Filled |
| FFC, FCB Thickness | 0.13mm ~ 0.38mm |
| Height Above Board | 0.273" (6.93mm) |
| Base Product Number | 520315 |
| Number of Positions | 6 |
| Current Rating (Amps) | 1A |
| Operating Temperature | -55°C ~ 105°C |
| Connector/Contact Type | Contacts, Vertical - 1 Sided |
| Material Flammability Rating | UL94 V-0 |
