Step1: Product
TE Connectivity AMP Connectors 5-1393302-1

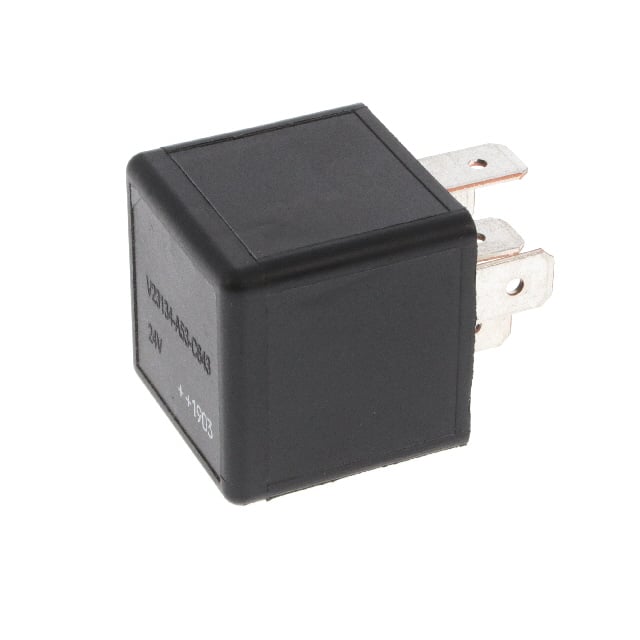

Image shown is a representation only
Manufacturer
Manufacturer No
5-1393302-1
Quantity
2
Availability
In Stock
Packaging
Bulk
Description
RELAY GEN PURPOSE SPDT 20A 24V
Detailed Description
Automotive Relay SPDT (1 Form C) 24VDC Coil Socketable
DataSheet
Series
F4
Coil Type
Non Latching
Packaging
Bulk
Coil Power
1.8W
Part Status
Active
Coil Current
74.1 mA
Coil Voltage
24VDC
Contact Form
SPDT (1 Form C)
Manufacturer
TE Connectivity AMP Connectors
Operate Time
7 ms
Release Time
2 ms
Mounting Type
Socketable
Coil Resistance
324 Ohms
Contact Material
Silver Alloy
Switching Voltage
28VDC - Nom
Termination Style
Plug In, Quick Connect - 0.110" (2.8mm)
Base Product Number
1393302
Must Operate Voltage
14.4 VDC
Must Release Voltage
3.2 VDC
Operating Temperature
-40°C ~ 125°C
Contact Rating (Current)
20 A
| Attribute | Value |
|---|---|
| Series | F4 |
| Coil Type | Non Latching |
| Packaging | Bulk |
| Coil Power | 1.8W |
| Part Status | Active |
| Coil Current | 74.1 mA |
| Coil Voltage | 24VDC |
| Contact Form | SPDT (1 Form C) |
| Manufacturer | TE Connectivity AMP Connectors |
| Operate Time | 7 ms |
| Release Time | 2 ms |
| Mounting Type | Socketable |
| Coil Resistance | 324 Ohms |
| Contact Material | Silver Alloy |
| Switching Voltage | 28VDC - Nom |
| Termination Style | Plug In, Quick Connect - 0.110" (2.8mm) |
| Base Product Number | 1393302 |
| Must Operate Voltage | 14.4 VDC |
| Must Release Voltage | 3.2 VDC |
| Operating Temperature | -40°C ~ 125°C |
| Contact Rating (Current) | 20 A |
