Step1: Product

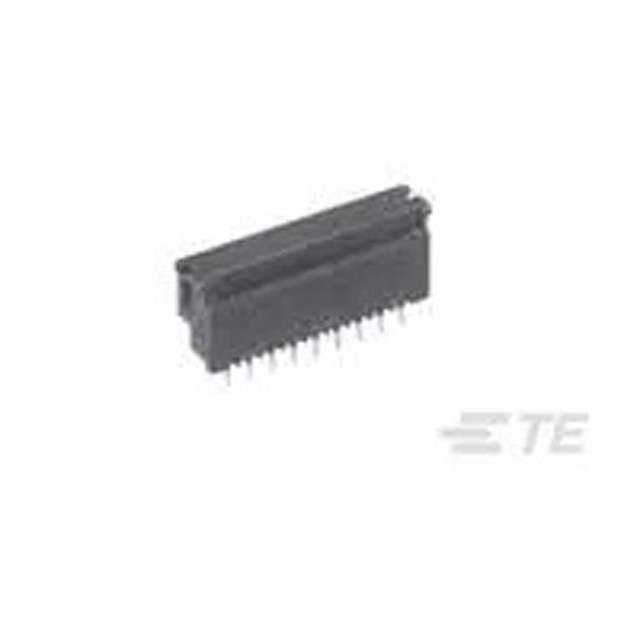

TE Connectivity AMP Connectors 487925-9
Image shown is a representation only
Manufacturer
Manufacturer No
487925-9
Packaging
Tube
Description
CONN FFC VERT 12POS 2.54MM PCB
Detailed Description
12 Position FFC Connector Contacts, Vertical - 1 Sided 0.100" (2.54mm) Through Hole
DataSheet
Pitch
0.100" (2.54mm)
Series
AMPMODU
Features
Zero Insertion Force (ZIF)
Packaging
Tube
Part Status
Active
Termination
Solder
Manufacturer
TE Connectivity AMP Connectors
Housing Color
Black
Mounting Type
Through Hole
Actuator Color
Black
Cable End Type
Straight
Contact Finish
Tin
Flat Flex Type
FFC
Locking Feature
Slide Lock
Contact Material
Phosphor Bronze
Housing Material
Thermoplastic
Actuator Material
Thermoplastic
FFC, FCB Thickness
0.12mm
Height Above Board
0.310" (7.87mm)
Base Product Number
487925
Number of Positions
12
Connector/Contact Type
Contacts, Vertical - 1 Sided
Contact Finish Thickness
150.0µin (3.81µm)
| Attribute | Value |
|---|---|
| Pitch | 0.100" (2.54mm) |
| Series | AMPMODU |
| Features | Zero Insertion Force (ZIF) |
| Packaging | Tube |
| Part Status | Active |
| Termination | Solder |
| Manufacturer | TE Connectivity AMP Connectors |
| Housing Color | Black |
| Mounting Type | Through Hole |
| Actuator Color | Black |
| Cable End Type | Straight |
| Contact Finish | Tin |
| Flat Flex Type | FFC |
| Locking Feature | Slide Lock |
| Contact Material | Phosphor Bronze |
| Housing Material | Thermoplastic |
| Actuator Material | Thermoplastic |
| FFC, FCB Thickness | 0.12mm |
| Height Above Board | 0.310" (7.87mm) |
| Base Product Number | 487925 |
| Number of Positions | 12 |
| Connector/Contact Type | Contacts, Vertical - 1 Sided |
| Contact Finish Thickness | 150.0µin (3.81µm) |
