Step1: Product

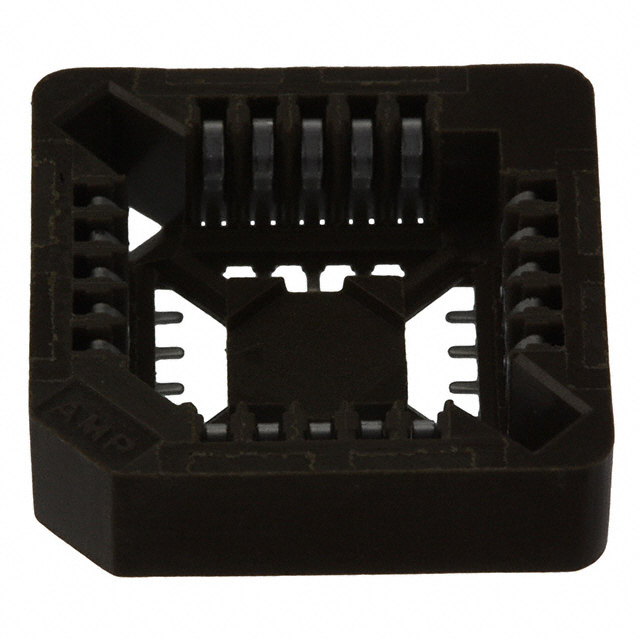

TE Connectivity AMP Connectors 3-822516-3
Image shown is a representation only
Manufacturer
Manufacturer No
3-822516-3
Packaging
Tape & Reel (TR)
Description
CONN SOCKET PLCC 20POS TIN
Detailed Description
20 (4 x 5) Pos PLCC Socket Tin Surface Mount
Datasheet
Type
PLCC
Features
Closed Frame
Packaging
Tape & Reel (TR)
Termination
Solder
Manufacturer
TE Connectivity AMP Connectors
Pitch - Post
0.050" (1.27mm)
Mounting Type
Surface Mount
Pitch - Mating
0.050" (1.27mm)
Housing Material
Thermoplastic
Base Product Number
822516
Contact Finish - Post
Tin
Contact Finish - Mating
Tin
Contact Material - Post
Phosphor Bronze
Contact Material - Mating
Phosphor Bronze
Material Flammability Rating
UL94 V-0
Contact Finish Thickness - Post
100.0µin (2.54µm)
Contact Finish Thickness - Mating
100.0µin (2.54µm)
Number of Positions or Pins (Grid)
20 (4 x 5)
| Attribute | Value |
|---|---|
| Type | PLCC |
| Features | Closed Frame |
| Packaging | Tape & Reel (TR) |
| Termination | Solder |
| Manufacturer | TE Connectivity AMP Connectors |
| Pitch - Post | 0.050" (1.27mm) |
| Mounting Type | Surface Mount |
| Pitch - Mating | 0.050" (1.27mm) |
| Housing Material | Thermoplastic |
| Base Product Number | 822516 |
| Contact Finish - Post | Tin |
| Contact Finish - Mating | Tin |
| Contact Material - Post | Phosphor Bronze |
| Contact Material - Mating | Phosphor Bronze |
| Material Flammability Rating | UL94 V-0 |
| Contact Finish Thickness - Post | 100.0µin (2.54µm) |
| Contact Finish Thickness - Mating | 100.0µin (2.54µm) |
| Number of Positions or Pins (Grid) | 20 (4 x 5) |
