TE Connectivity AMP Connectors 3-292173-3

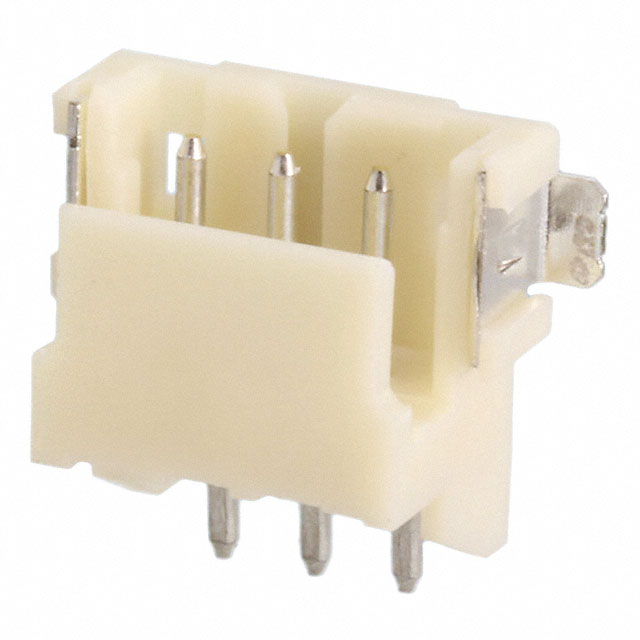

Image shown is a representation only
Manufacturer
Manufacturer No
3-292173-3
Packaging
Tape & Reel (TR); Cut Tape (CT)
Description
CONN HEADER SMD R/A 3POS 2MM
Detailed Description
Connector Header Surface Mount, Right Angle 3 position 0.079" (2.00mm)
DataSheet
Mfr
TE Connectivity AMP Connectors
Style
Board to Cable/Wire
Series
CT
Features
Solder Retention
Packaging
Tape & Reel (TR); Cut Tape (CT)
Shrouding
Shrouded - 4 Wall
Part Status
Active
Termination
Solder
Applications
General Purpose
Contact Type
Male Pin
Contact Shape
Square
Mounting Type
Surface Mount, Right Angle
Connector Type
Header
Fastening Type
Detent Lock
Number of Rows
1
Pitch - Mating
0.079" (2.00mm)
Voltage Rating
125VAC
Contact Material
Brass
Insulation Color
Natural
Insulation Height
0.228" (5.80mm)
Base Product Number
292173
Insulation Material
Polyamide (PA6T), Nylon 6T, Glass Filled
Number of Positions
3
Contact Finish - Post
Tin
Current Rating (Amps)
Varies by Wire Gauge
Contact Finish - Mating
Tin
Contact Length - Mating
0.165" (4.20mm)
Number of Positions Loaded
All
Material Flammability Rating
UL94 V-0
| Attribute | Value |
|---|---|
| Mfr | TE Connectivity AMP Connectors |
| Style | Board to Cable/Wire |
| Series | CT |
| Features | Solder Retention |
| Packaging | Tape & Reel (TR); Cut Tape (CT) |
| Shrouding | Shrouded - 4 Wall |
| Part Status | Active |
| Termination | Solder |
| Applications | General Purpose |
| Contact Type | Male Pin |
| Contact Shape | Square |
| Mounting Type | Surface Mount, Right Angle |
| Connector Type | Header |
| Fastening Type | Detent Lock |
| Number of Rows | 1 |
| Pitch - Mating | 0.079" (2.00mm) |
| Voltage Rating | 125VAC |
| Contact Material | Brass |
| Insulation Color | Natural |
| Insulation Height | 0.228" (5.80mm) |
| Base Product Number | 292173 |
| Insulation Material | Polyamide (PA6T), Nylon 6T, Glass Filled |
| Number of Positions | 3 |
| Contact Finish - Post | Tin |
| Current Rating (Amps) | Varies by Wire Gauge |
| Contact Finish - Mating | Tin |
| Contact Length - Mating | 0.165" (4.20mm) |
| Number of Positions Loaded | All |
| Material Flammability Rating | UL94 V-0 |
