TE Connectivity AMP Connectors 3-292207-3

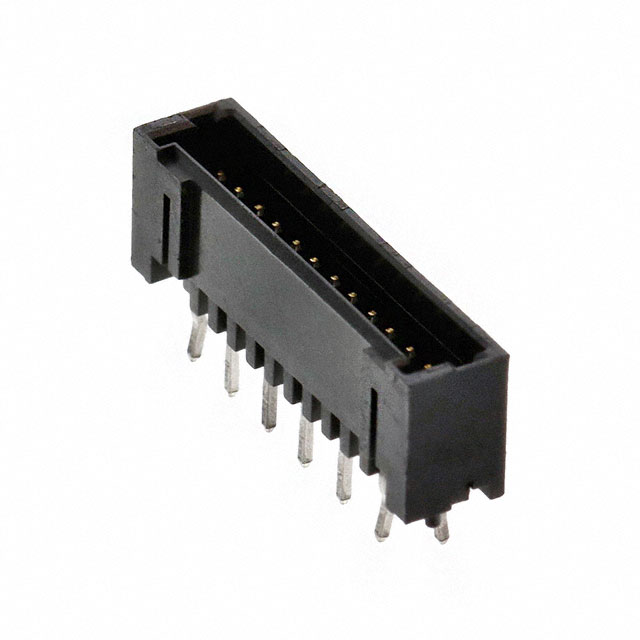

Image shown is a representation only
Manufacturer
Manufacturer No
3-292207-3
Quantity
650
Availability
In Stock
Packaging
Tray
Description
CONN HEADER VERT 13POS 1.5MM
Detailed Description
Connector Header Through Hole 13 position 0.059" (1.50mm)
DataSheet
Mfr
TE Connectivity AMP Connectors
Style
Board to Cable/Wire
Series
Mini CT
Features
Board Guide
Packaging
Tray
Shrouding
Shrouded - 4 Wall
Part Status
Active
Termination
Kinked Pin, Solder
Applications
General Purpose
Contact Type
Male Pin
Contact Shape
Square
Mounting Type
Through Hole
Connector Type
Header
Fastening Type
Detent Lock
Number of Rows
1
Pitch - Mating
0.059" (1.50mm)
Voltage Rating
50VAC
Contact Material
Brass
Insulation Color
Black
Insulation Height
0.272" (6.91mm)
Base Product Number
292207
Insulation Material
Polyamide (PA), Nylon, Glass Filled
Number of Positions
13
Contact Finish - Post
Tin
Contact Length - Post
0.118" (3.00mm)
Current Rating (Amps)
Varies by Wire Gauge
Operating Temperature
-30°C ~ 105°C
Overall Contact Length
0.307" (7.80mm)
Contact Finish - Mating
Tin
Contact Length - Mating
0.094" (2.40mm)
Number of Positions Loaded
All
Material Flammability Rating
UL94 V-0
Contact Finish Thickness - Mating
39.4µin (1.00µm)
