Step1: Product

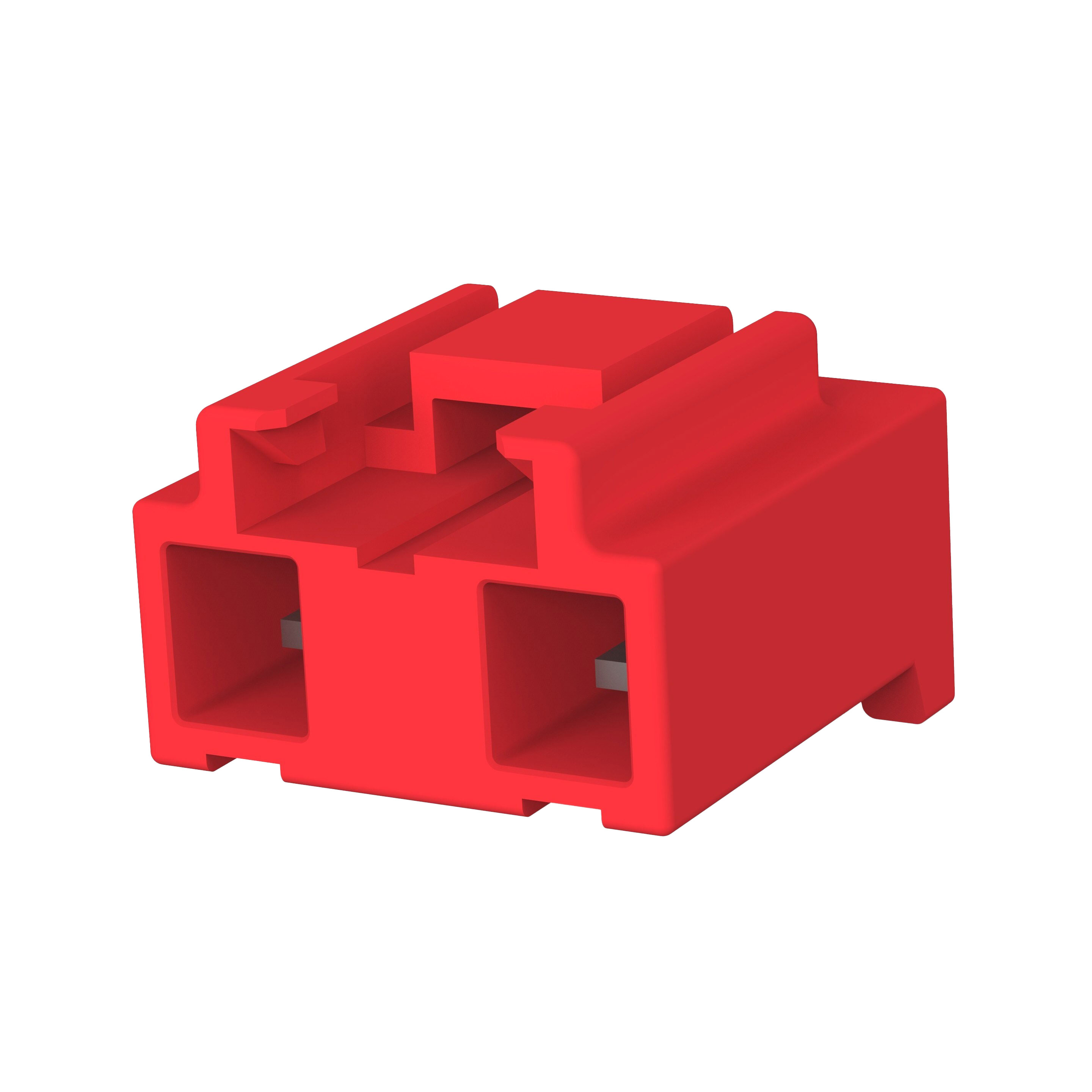

TE Connectivity AMP Connectors 3-176976-2
Image shown is a representation only
Manufacturer
Manufacturer No
3-176976-2
Packaging
Bulk
Description
CONN HEADER VERT 3POS 3.96MM
Detailed Description
Connector Header Through Hole 3 position 0.156" (3.96mm)
DataSheet
Mfr
TE Connectivity AMP Connectors
Style
Board to Cable/Wire
Series
Universal Power
Packaging
Bulk
Shrouding
Shrouded - 4 Wall
Part Status
Active
Termination
Kinked Pin, Solder
Applications
General Purpose
Contact Type
Tab
Contact Shape
Rectangular
Mounting Type
Through Hole
Connector Type
Header
Fastening Type
Locking Ramp
Number of Rows
1
Pitch - Mating
0.156" (3.96mm)
Contact Material
Brass
Insulation Color
Red
Insulation Height
0.551" (14.00mm)
Base Product Number
176976
Insulation Material
Polyamide (PA66), Nylon 6/6, Glass Filled
Number of Positions
3
Contact Finish - Post
Tin
Contact Length - Post
0.150" (3.81mm)
Current Rating (Amps)
Varies by Wire Gauge
Operating Temperature
-30°C ~ 105°C
Contact Finish - Mating
Tin
Number of Positions Loaded
2
Material Flammability Rating
UL94 V-0
| Attribute | Value |
|---|---|
| Mfr | TE Connectivity AMP Connectors |
| Style | Board to Cable/Wire |
| Series | Universal Power |
| Packaging | Bulk |
| Shrouding | Shrouded - 4 Wall |
| Part Status | Active |
| Termination | Kinked Pin, Solder |
| Applications | General Purpose |
| Contact Type | Tab |
| Contact Shape | Rectangular |
| Mounting Type | Through Hole |
| Connector Type | Header |
| Fastening Type | Locking Ramp |
| Number of Rows | 1 |
| Pitch - Mating | 0.156" (3.96mm) |
| Contact Material | Brass |
| Insulation Color | Red |
| Insulation Height | 0.551" (14.00mm) |
| Base Product Number | 176976 |
| Insulation Material | Polyamide (PA66), Nylon 6/6, Glass Filled |
| Number of Positions | 3 |
| Contact Finish - Post | Tin |
| Contact Length - Post | 0.150" (3.81mm) |
| Current Rating (Amps) | Varies by Wire Gauge |
| Operating Temperature | -30°C ~ 105°C |
| Contact Finish - Mating | Tin |
| Number of Positions Loaded | 2 |
| Material Flammability Rating | UL94 V-0 |
