Step1: Product

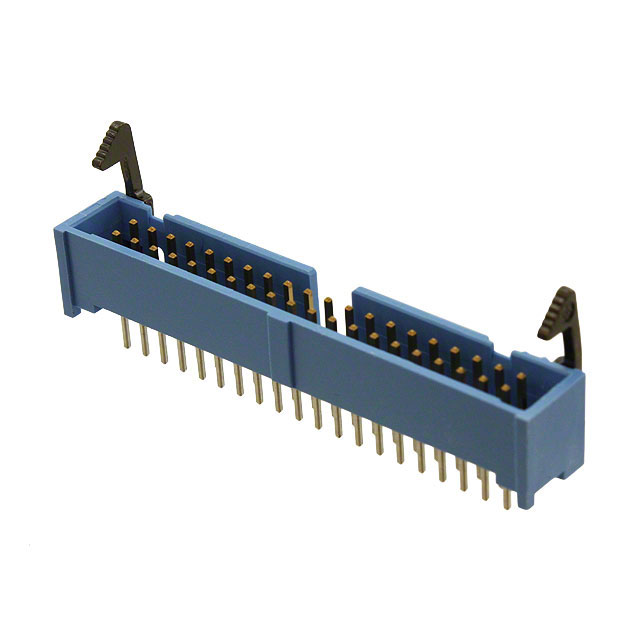

TE Connectivity AMP Connectors 3-1761606-3
Image shown is a representation only
Manufacturer
Manufacturer No
3-1761606-3
Quantity
4
Availability
In Stock
Packaging
Tube
Description
CONN HEADER VERT 40POS 2.54MM
Detailed Description
Connector Header Through Hole 40 position 0.100" (2.54mm)
DataSheet
Mfr
TE Connectivity AMP Connectors
Style
Board to Cable/Wire
Series
AMP-Latch
Features
Keying Slot
Packaging
Tube
Shrouding
Shrouded - 4 Wall
Part Status
Active
Termination
Solder
Contact Type
Male Pin
Contact Shape
Square
Mounting Type
Through Hole
Connector Type
Header
Fastening Type
Latch Lock/Eject Hooks, Long
Number of Rows
2
Pitch - Mating
0.100" (2.54mm)
Voltage Rating
250VAC
Contact Material
Phosphor Bronze
Insulation Color
Blue
Insulation Height
0.404" (10.26mm)
Base Product Number
1761606
Insulation Material
Polybutylene Terephthalate (PBT)
Number of Positions
40
Row Spacing - Mating
0.100" (2.54mm)
Contact Finish - Post
Tin
Contact Length - Post
0.102" (2.60mm)
Current Rating (Amps)
1A per Contact
Operating Temperature
-65°C ~ 105°C
Contact Finish - Mating
Gold or Gold-Palladium
Contact Length - Mating
0.237" (6.02mm)
Number of Positions Loaded
All
Material Flammability Rating
UL94 V-0
Contact Finish Thickness - Post
100.0µin (2.54µm)
Contact Finish Thickness - Mating
30.0µin (0.76µm)
| Attribute | Value |
|---|---|
| Mfr | TE Connectivity AMP Connectors |
| Style | Board to Cable/Wire |
| Series | AMP-Latch |
| Features | Keying Slot |
| Packaging | Tube |
| Shrouding | Shrouded - 4 Wall |
| Part Status | Active |
| Termination | Solder |
| Contact Type | Male Pin |
| Contact Shape | Square |
| Mounting Type | Through Hole |
| Connector Type | Header |
| Fastening Type | Latch Lock/Eject Hooks, Long |
| Number of Rows | 2 |
| Pitch - Mating | 0.100" (2.54mm) |
| Voltage Rating | 250VAC |
| Contact Material | Phosphor Bronze |
| Insulation Color | Blue |
| Insulation Height | 0.404" (10.26mm) |
| Base Product Number | 1761606 |
| Insulation Material | Polybutylene Terephthalate (PBT) |
| Number of Positions | 40 |
| Row Spacing - Mating | 0.100" (2.54mm) |
| Contact Finish - Post | Tin |
| Contact Length - Post | 0.102" (2.60mm) |
| Current Rating (Amps) | 1A per Contact |
| Operating Temperature | -65°C ~ 105°C |
| Contact Finish - Mating | Gold or Gold-Palladium |
| Contact Length - Mating | 0.237" (6.02mm) |
| Number of Positions Loaded | All |
| Material Flammability Rating | UL94 V-0 |
| Contact Finish Thickness - Post | 100.0µin (2.54µm) |
| Contact Finish Thickness - Mating | 30.0µin (0.76µm) |
