Step1: Product

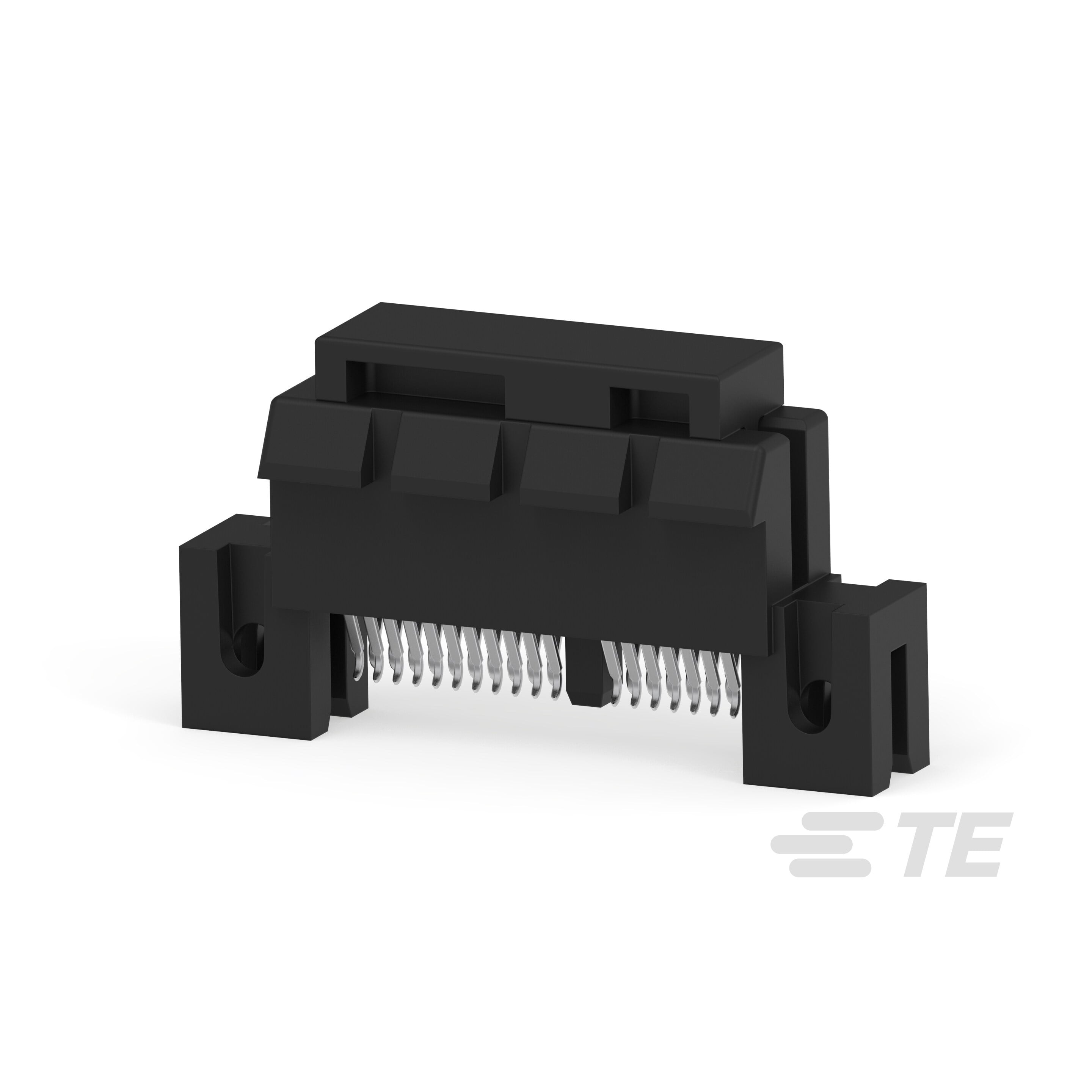

TE Connectivity AMP Connectors 2387405-1
Image shown is a representation only
Manufacturer
Manufacturer No
2387405-1
Packaging
Tray
Description
PCIEG4,SMT,STRADDLE,36POS,G/F,O/
Detailed Description
36 Position Female Connector PCI Express™ Gold 0.039" (1.00mm) Black
Datasheet
Color
Black
Pitch
0.039" (1.00mm)
Gender
Female
Features
Locking Ramp
Read Out
Dual
Card Type
PCI Express™
Packaging
Tray
Termination
Solder
Contact Type
Cantilever
Manufacturer
TE Connectivity AMP Connectors
Mounting Type
Board Edge, Straddle Mount
Card Thickness
0.062" (1.57mm)
Contact Finish
Gold
Flange Feature
Straddle Mount Opening, Unthreaded, 0.087" (2.20mm)
Number of Rows
2
Contact Material
Phosphor Bronze
Termination Rows
2
Base Product Number
2387405
Number of Positions
36
Material - Insulation
Polyamide (PA9T), Nylon 9T, Glass Filled
Operating Temperature
-40°C ~ 85°C
Contact Finish Thickness
1.00µin (0.025µm)
Number of Positions/Bay/Row
7; 11
| Attribute | Value |
|---|---|
| Color | Black |
| Pitch | 0.039" (1.00mm) |
| Gender | Female |
| Features | Locking Ramp |
| Read Out | Dual |
| Card Type | PCI Express™ |
| Packaging | Tray |
| Termination | Solder |
| Contact Type | Cantilever |
| Manufacturer | TE Connectivity AMP Connectors |
| Mounting Type | Board Edge, Straddle Mount |
| Card Thickness | 0.062" (1.57mm) |
| Contact Finish | Gold |
| Flange Feature | Straddle Mount Opening, Unthreaded, 0.087" (2.20mm) |
| Number of Rows | 2 |
| Contact Material | Phosphor Bronze |
| Termination Rows | 2 |
| Base Product Number | 2387405 |
| Number of Positions | 36 |
| Material - Insulation | Polyamide (PA9T), Nylon 9T, Glass Filled |
| Operating Temperature | -40°C ~ 85°C |
| Contact Finish Thickness | 1.00µin (0.025µm) |
| Number of Positions/Bay/Row | 7; 11 |
