Step1: Product

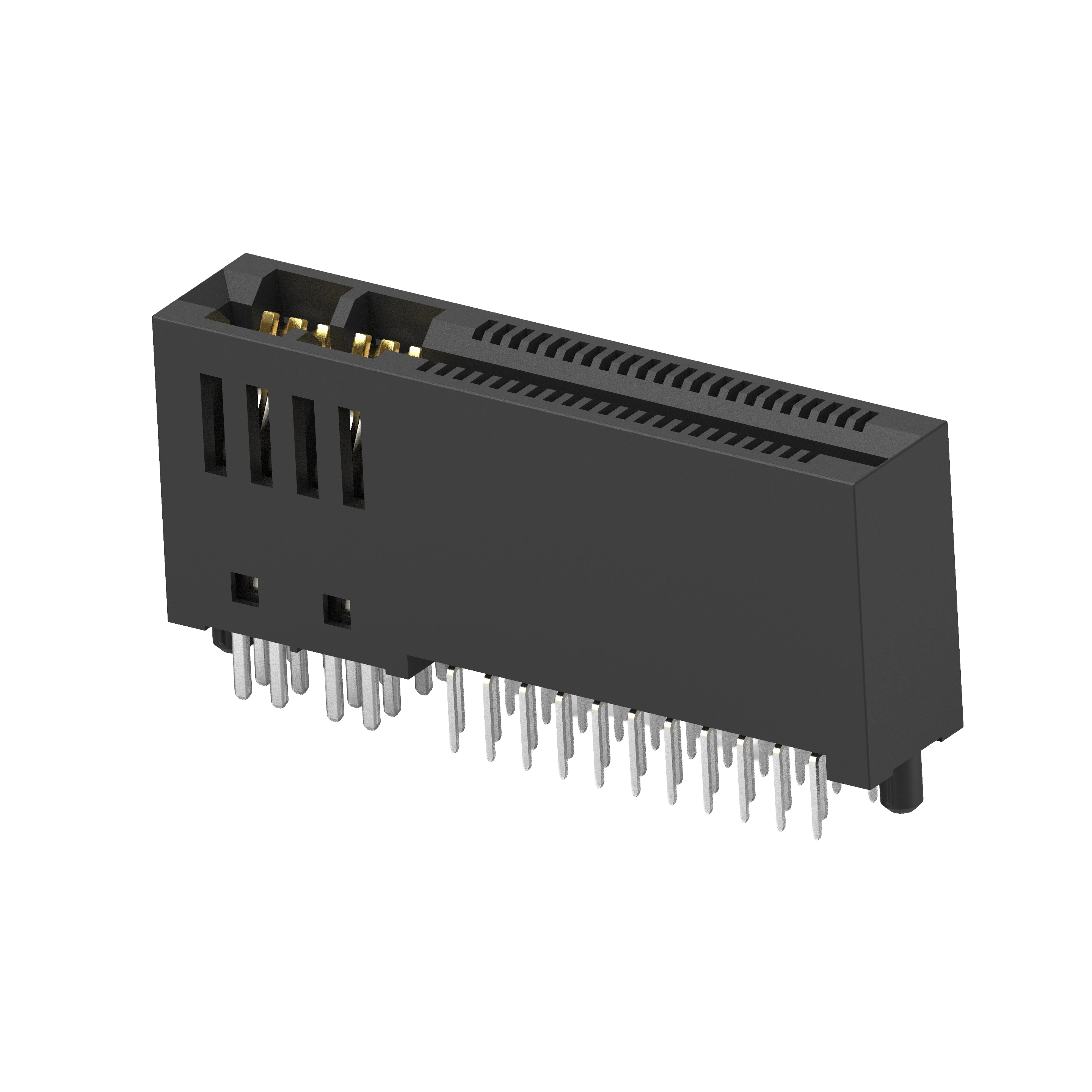

TE Connectivity AMP Connectors 2340164-3
Image shown is a representation only
Manufacturer
Manufacturer No
2340164-3
Quantity
6
Availability
In Stock
Packaging
Tape & Reel (TR)
Description
CONN EDGE DUAL FMALE 52POS GOLD
Detailed Description
52 (44 + 8 Power) Position Female Connector Non Specified - Dual Edge Gold Black
Datasheet
Color
Black
Gender
Female
Series
HD+
Features
Board Guide, Pick and Place
Read Out
Dual
Card Type
Non Specified - Dual Edge
Packaging
Tape & Reel (TR)
Termination
Solder
Contact Type
Cantilever
Manufacturer
TE Connectivity AMP Connectors
Mounting Type
Through Hole
Card Thickness
0.062" (1.57mm)
Contact Finish
Gold
Number of Rows
2
Contact Material
Copper Alloy
Base Product Number
2340164
Number of Positions
52 (44 + 8 Power)
Material - Insulation
Thermoplastic, Glass Filled
Operating Temperature
-55°C ~ 105°C
Contact Finish Thickness
30.0µin (0.76µm)
Number of Positions/Bay/Row
22; 4
| Attribute | Value |
|---|---|
| Color | Black |
| Gender | Female |
| Series | HD+ |
| Features | Board Guide, Pick and Place |
| Read Out | Dual |
| Card Type | Non Specified - Dual Edge |
| Packaging | Tape & Reel (TR) |
| Termination | Solder |
| Contact Type | Cantilever |
| Manufacturer | TE Connectivity AMP Connectors |
| Mounting Type | Through Hole |
| Card Thickness | 0.062" (1.57mm) |
| Contact Finish | Gold |
| Number of Rows | 2 |
| Contact Material | Copper Alloy |
| Base Product Number | 2340164 |
| Number of Positions | 52 (44 + 8 Power) |
| Material - Insulation | Thermoplastic, Glass Filled |
| Operating Temperature | -55°C ~ 105°C |
| Contact Finish Thickness | 30.0µin (0.76µm) |
| Number of Positions/Bay/Row | 22; 4 |
