Step1: Product

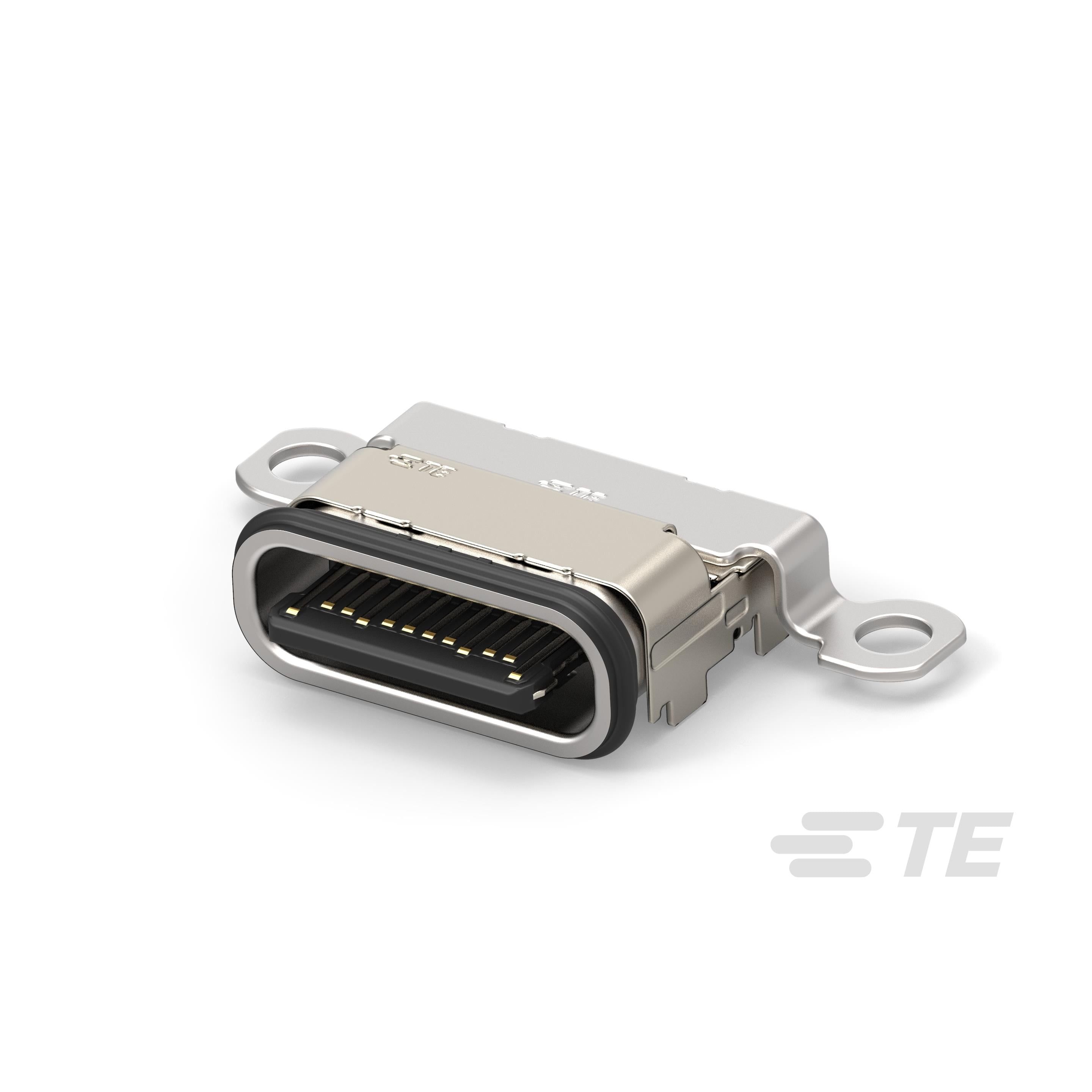

TE Connectivity AMP Connectors 2329418-2
Image shown is a representation only
Manufacturer
Manufacturer No
2329418-2
Packaging
Tape & Reel (TR); Cut Tape (CT)
Description
USB TYPE C,REC IPX8 ON BOARD WIT
Detailed Description
USB-C (USB TYPE-C) USB 3.2 Gen 2 (USB 3.1 Gen 2, Superspeed + (USB 3.1)) Receptacle Connector 24 Position Surface Mount, Right Angle; Through Hole
DataSheet
Gender
Receptacle
Packaging
Tape & Reel (TR); Cut Tape (CT)
Shielding
Shielded
Part Status
Active
Termination
Solder
Manufacturer
TE Connectivity AMP Connectors
Mating Cycles
10000
Mounting Type
Surface Mount, Right Angle; Through Hole
Connector Type
USB-C (USB TYPE-C)
Contact Finish
Gold
Specifications
USB 3.2 Gen 2 (USB 3.1 Gen 2, Superspeed + (USB 3.1))
Number of Ports
1
Voltage - Rated
30V
Insulation Color
Black
Mounting Feature
Horizontal
Ingress Protection
IP68 - Dust Tight, Waterproof
Number of Contacts
24
Base Product Number
2329418
Current Rating (Amps)
0.25A, 1A, 1.25A
Operating Temperature
-40°C ~ 85°C
| Attribute | Value |
|---|---|
| Gender | Receptacle |
| Packaging | Tape & Reel (TR); Cut Tape (CT) |
| Shielding | Shielded |
| Part Status | Active |
| Termination | Solder |
| Manufacturer | TE Connectivity AMP Connectors |
| Mating Cycles | 10000 |
| Mounting Type | Surface Mount, Right Angle; Through Hole |
| Connector Type | USB-C (USB TYPE-C) |
| Contact Finish | Gold |
| Specifications | USB 3.2 Gen 2 (USB 3.1 Gen 2, Superspeed + (USB 3.1)) |
| Number of Ports | 1 |
| Voltage - Rated | 30V |
| Insulation Color | Black |
| Mounting Feature | Horizontal |
| Ingress Protection | IP68 - Dust Tight, Waterproof |
| Number of Contacts | 24 |
| Base Product Number | 2329418 |
| Current Rating (Amps) | 0.25A, 1A, 1.25A |
| Operating Temperature | -40°C ~ 85°C |
