Step1: Product

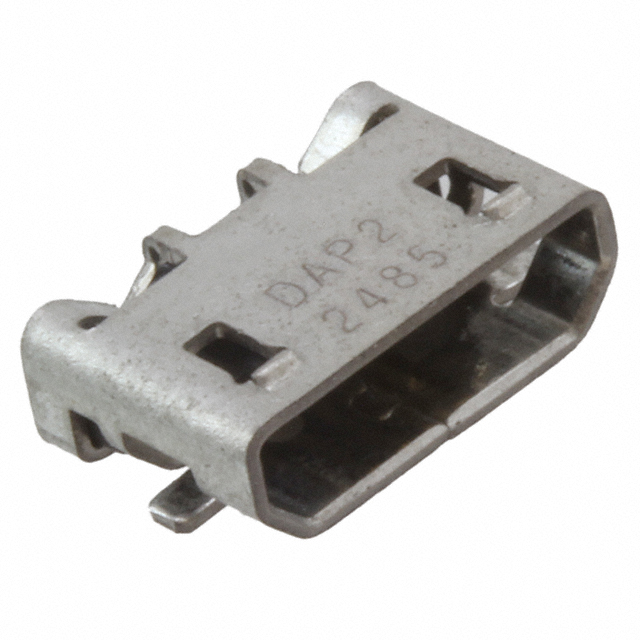

TE Connectivity AMP Connectors 2174507-2
Image shown is a representation only
Manufacturer
Manufacturer No
2174507-2
Quantity
3956
Availability
In Stock
Packaging
Tape & Reel (TR); Cut Tape (CT);
Description
CONN RCPT USB2.0 MICRO B SMD R/A
Detailed Description
USB - micro B USB 2.0 Receptacle Connector 5 Position Surface Mount, Right Angle
DataSheet
Gender
Receptacle
Features
Pick and Place, Solder Retention
Packaging
Tape & Reel (TR); Cut Tape (CT); Digi-Reel®
Part Status
Active
Termination
Solder
Manufacturer
TE Connectivity AMP Connectors
Mating Cycles
10000
Mounting Type
Surface Mount, Right Angle
Connector Type
USB - micro B
Contact Finish
Gold
Specifications
USB 2.0
Number of Ports
1
Voltage - Rated
30V
Mounting Feature
Horizontal
Number of Contacts
5
Base Product Number
2174507
Current Rating (Amps)
0.5A, 1A, 1.8A
Operating Temperature
-30°C ~ 85°C
Shell/Shielding Material
Steel, Stainless
Material Flammability Rating
UL94 V-0
| Attribute | Value |
|---|---|
| Gender | Receptacle |
| Features | Pick and Place, Solder Retention |
| Packaging | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |
| Part Status | Active |
| Termination | Solder |
| Manufacturer | TE Connectivity AMP Connectors |
| Mating Cycles | 10000 |
| Mounting Type | Surface Mount, Right Angle |
| Connector Type | USB - micro B |
| Contact Finish | Gold |
| Specifications | USB 2.0 |
| Number of Ports | 1 |
| Voltage - Rated | 30V |
| Mounting Feature | Horizontal |
| Number of Contacts | 5 |
| Base Product Number | 2174507 |
| Current Rating (Amps) | 0.5A, 1A, 1.8A |
| Operating Temperature | -30°C ~ 85°C |
| Shell/Shielding Material | Steel, Stainless |
| Material Flammability Rating | UL94 V-0 |
