Step1: Product

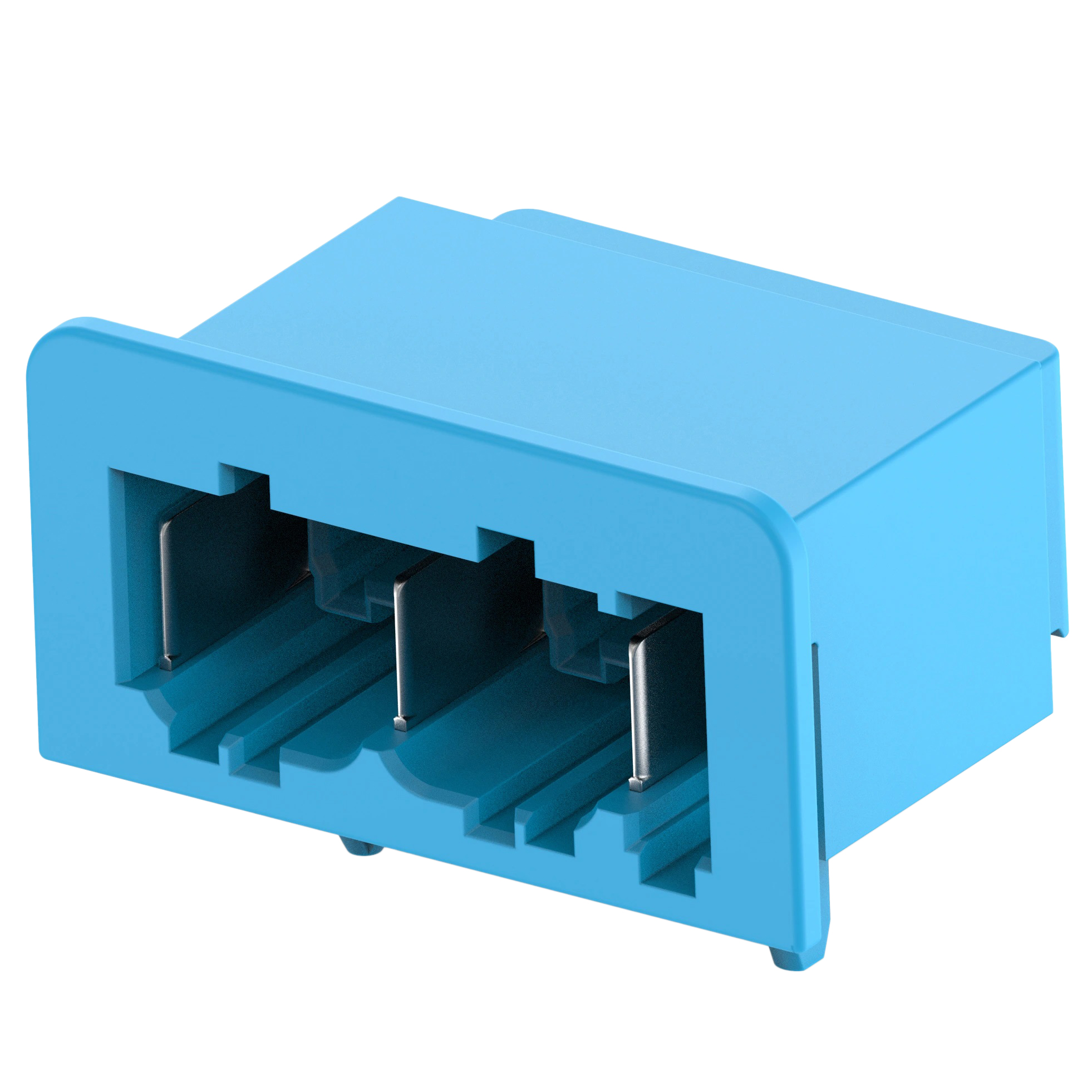

TE Connectivity AMP Connectors 2305987-3
Image shown is a representation only
Manufacturer
Manufacturer No
2305987-3
Packaging
Tape & Reel (TR); Cut Tape (CT)
Description
2-PORT MATENET HDR ASSY 90DEG, C
Detailed Description
Connector Header Through Hole, Right Angle 4 position
DataSheet
Mfr
TE Connectivity AMP Connectors
Style
Board to Cable/Wire
Series
MATEnet
Features
Board Guide
Packaging
Tape & Reel (TR); Cut Tape (CT)
Shrouding
Shrouded - 4 Wall
Part Status
Active
Termination
Solder
Contact Type
Tab
Mounting Type
Through Hole, Right Angle
Connector Type
Header
Number of Rows
1
Contact Material
Copper Alloy
Insulation Color
Blue
Insulation Height
0.531" (13.50mm)
Base Product Number
2305987
Insulation Material
Polyamide (PA4T), Nylon 4T, Glass Filled
Number of Positions
4
Contact Finish - Post
Tin
Contact Length - Post
0.094" (2.40mm)
Contact Finish - Mating
Tin
Number of Positions Loaded
All
Contact Finish Thickness - Post
12.0µin (0.30µm)
Contact Finish Thickness - Mating
118.1µin (3.00µm)
| Attribute | Value |
|---|---|
| Mfr | TE Connectivity AMP Connectors |
| Style | Board to Cable/Wire |
| Series | MATEnet |
| Features | Board Guide |
| Packaging | Tape & Reel (TR); Cut Tape (CT) |
| Shrouding | Shrouded - 4 Wall |
| Part Status | Active |
| Termination | Solder |
| Contact Type | Tab |
| Mounting Type | Through Hole, Right Angle |
| Connector Type | Header |
| Number of Rows | 1 |
| Contact Material | Copper Alloy |
| Insulation Color | Blue |
| Insulation Height | 0.531" (13.50mm) |
| Base Product Number | 2305987 |
| Insulation Material | Polyamide (PA4T), Nylon 4T, Glass Filled |
| Number of Positions | 4 |
| Contact Finish - Post | Tin |
| Contact Length - Post | 0.094" (2.40mm) |
| Contact Finish - Mating | Tin |
| Number of Positions Loaded | All |
| Contact Finish Thickness - Post | 12.0µin (0.30µm) |
| Contact Finish Thickness - Mating | 118.1µin (3.00µm) |
