Step1: Product
TE Connectivity AMP Connectors 2305908-4

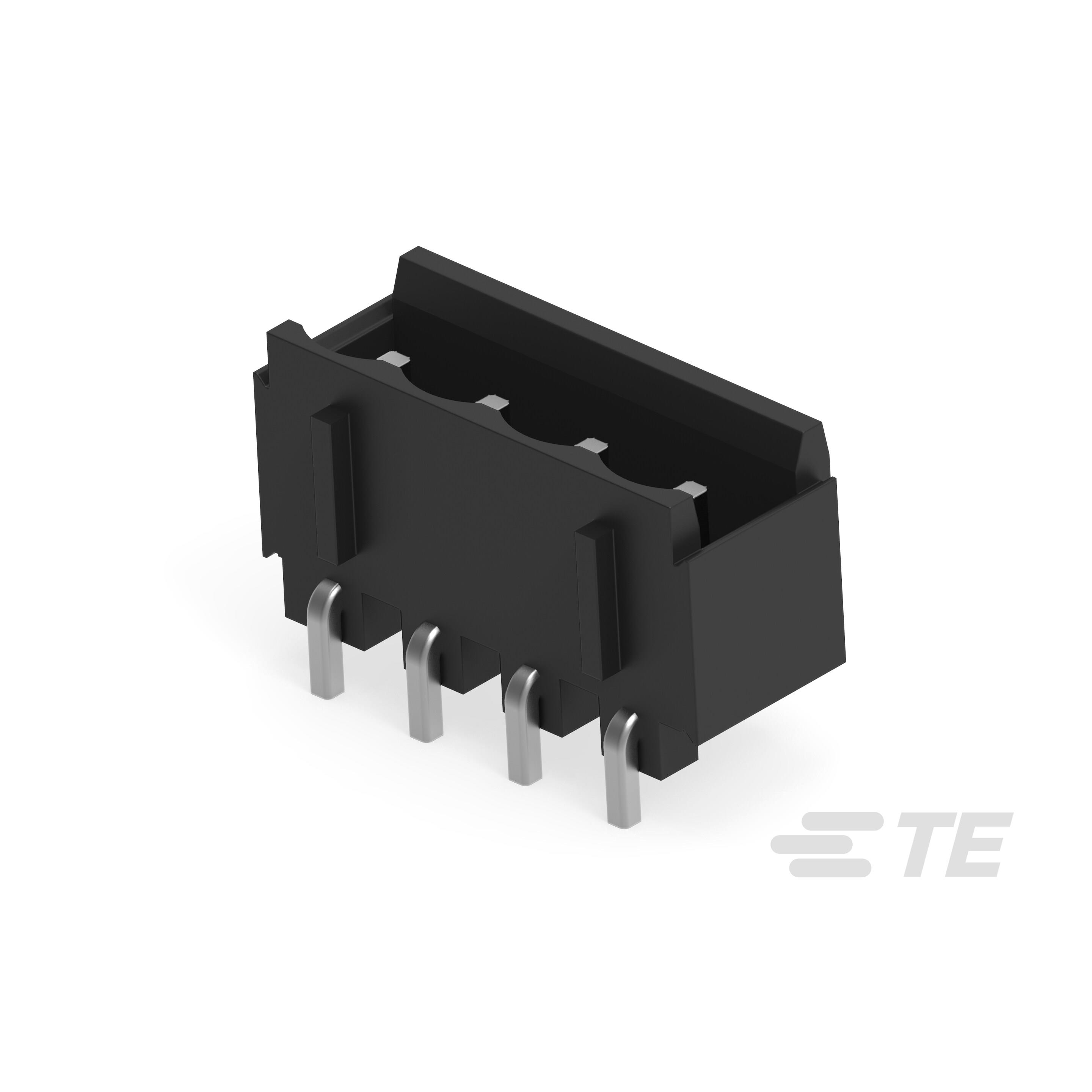

Image shown is a representation only
Manufacturer
Manufacturer No
2305908-4
Packaging
Tape & Reel (TR)
Description
SMT TB R/A HEADER, 5.0MM, 4 POS
Detailed Description
4 Position Terminal Block Header, Male Pins, Shrouded (4 Side) 0.197" (5.00mm) 90°, Right Angle Surface Mount
DataSheet
Type
Header, Male Pins, Shrouded (4 Side)
Color
Black
Pitch
0.197" (5.00mm)
Series
WireMate, TB, Buchanan
Packaging
Tape & Reel (TR)
Part Status
Obsolete
Current - UL
15 A
Manufacturer
TE Connectivity AMP Connectors
Voltage - UL
300 V
Mounting Type
Surface Mount
Contact Material
Copper Alloy
Housing Material
Thermoplastic
Number of Levels
1
Insulation Height
0.370" (9.40mm)
Termination Style
Solder
Header Orientation
90°, Right Angle
Base Product Number
2305908
Number of Positions
4
Positions Per Level
4
Contact Mating Finish
Tin
Material Flammability Rating
UL94 V-0
| Attribute | Value |
|---|---|
| Type | Header, Male Pins, Shrouded (4 Side) |
| Color | Black |
| Pitch | 0.197" (5.00mm) |
| Series | WireMate, TB, Buchanan |
| Packaging | Tape & Reel (TR) |
| Part Status | Obsolete |
| Current - UL | 15 A |
| Manufacturer | TE Connectivity AMP Connectors |
| Voltage - UL | 300 V |
| Mounting Type | Surface Mount |
| Contact Material | Copper Alloy |
| Housing Material | Thermoplastic |
| Number of Levels | 1 |
| Insulation Height | 0.370" (9.40mm) |
| Termination Style | Solder |
| Header Orientation | 90°, Right Angle |
| Base Product Number | 2305908 |
| Number of Positions | 4 |
| Positions Per Level | 4 |
| Contact Mating Finish | Tin |
| Material Flammability Rating | UL94 V-0 |
