Step1: Product

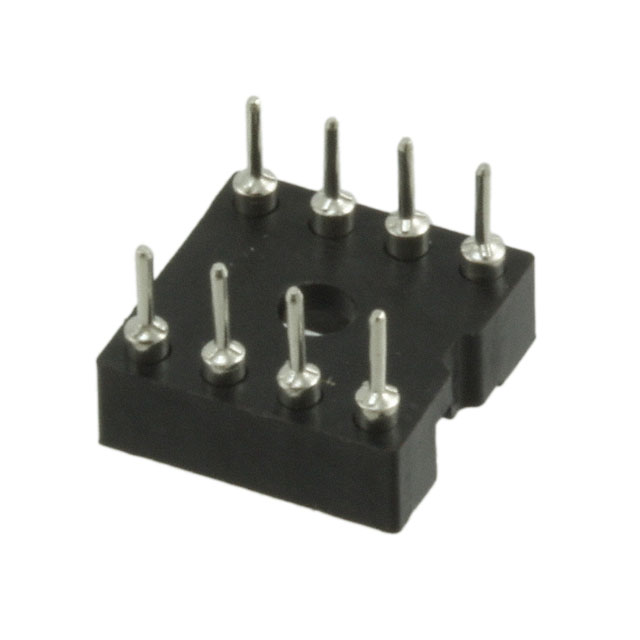

TE Connectivity AMP Connectors 2-1571550-2
Image shown is a representation only
Manufacturer
Manufacturer No
2-1571550-2
Packaging
Bulk
Description
CONN IC DIP SOCKET 8POS GOLD
Detailed Description
8 (2 x 4) Pos DIP, 0.3" (7.62mm) Row Spacing Socket Gold Through Hole
DataSheet
Type
DIP, 0.3" (7.62mm) Row Spacing
Series
500
Features
Closed Frame
Packaging
Bulk
Part Status
Obsolete
Termination
Solder
Manufacturer
TE Connectivity AMP Connectors
Pitch - Post
0.100" (2.54mm)
Mounting Type
Through Hole
Pitch - Mating
0.100" (2.54mm)
Housing Material
Polycyclohexylenedimethylene Terephthalate (PCT), Polyester
Contact Resistance
10mOhm
Base Product Number
1571550
Contact Finish - Post
Gold
Operating Temperature
-55°C ~ 125°C
Contact Finish - Mating
Gold
Contact Material - Post
Beryllium Copper
Termination Post Length
0.125" (3.18mm)
Contact Material - Mating
Beryllium Copper
Material Flammability Rating
UL94 V-0
Contact Finish Thickness - Post
25.0µin (0.63µm)
Contact Finish Thickness - Mating
25.0µin (0.63µm)
Number of Positions or Pins (Grid)
8 (2 x 4)
| Attribute | Value |
|---|---|
| Type | DIP, 0.3" (7.62mm) Row Spacing |
| Series | 500 |
| Features | Closed Frame |
| Packaging | Bulk |
| Part Status | Obsolete |
| Termination | Solder |
| Manufacturer | TE Connectivity AMP Connectors |
| Pitch - Post | 0.100" (2.54mm) |
| Mounting Type | Through Hole |
| Pitch - Mating | 0.100" (2.54mm) |
| Housing Material | Polycyclohexylenedimethylene Terephthalate (PCT), Polyester |
| Contact Resistance | 10mOhm |
| Base Product Number | 1571550 |
| Contact Finish - Post | Gold |
| Operating Temperature | -55°C ~ 125°C |
| Contact Finish - Mating | Gold |
| Contact Material - Post | Beryllium Copper |
| Termination Post Length | 0.125" (3.18mm) |
| Contact Material - Mating | Beryllium Copper |
| Material Flammability Rating | UL94 V-0 |
| Contact Finish Thickness - Post | 25.0µin (0.63µm) |
| Contact Finish Thickness - Mating | 25.0µin (0.63µm) |
| Number of Positions or Pins (Grid) | 8 (2 x 4) |
